Kacon HRF-MD2 Light Duty Foot Switch, SPDT, Aluminum, Momentary

Alternative Views:

Price: $19.35

Note: Delivery: 2-5 Business Days
MFG P/N: HRF-MD2
MFG: Kacon
Weight (lbs): 1

Quantity in Stock :173

Availability: In Stock
Product Code: HRF-MD2

Qty:

Description

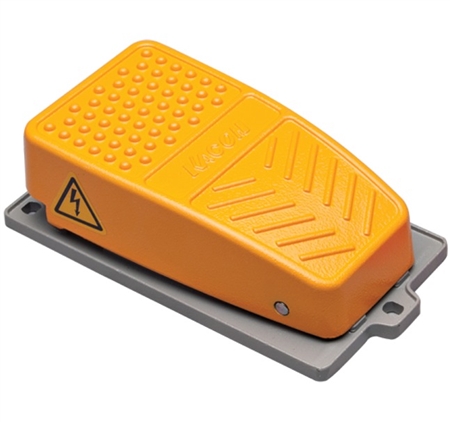

The Kacon HRF-MD2 light duty foot switch has an SPDT contact arrangement with momentary operation and a die cast aluminum housing with mounting plate. Features an integrated V type micro switch and 24K gold plated contacts. Rated IP 54. Operation: The switch is on while the pedal is held down, and off once the pedal is released.

Specifications

Switch Dimensions- 71mm W x 135mm L x 42mm H
Foot Switch Operation- Momentary
Contact Arrangement- SPDT (1 NO + 1 NC)
Rated Current- 10A, 250V AC
Integrated Switch- V Type Micro Switch (UL, CUL, VDE, CE Certified)
Housing Material- Die Cast Aluminum
Contact Material- 24K Gold Plated
Cable- 0.75mm² x 3 line cables x 2m
Ingress Protection- IP 54
Approvals- CE

HRF-MD2 Light Duty Momentary Metal Foot Switch
