Overview
The

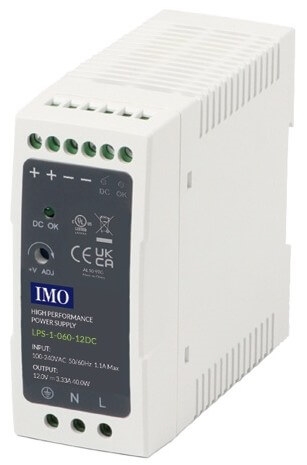

IMO Precision Controls LPS-1-060-12DC is a 60W single phase DIN rail power supply designed to convert a universal input of 85-264VAC or 120-370VDC into a regulated 12V DC output at 5 Amp. It is ideal for low voltage control circuits and industrial automation applications that require reliable DC power in a compact DIN rail mount design.Class 2DIN Rail MountIP20
With
86% efficiency, Class II isolation, an internal input filter, and built-in overload and short circuit protection, this power supply is engineered for dependable operation in control panels and automation systems. Its plastic housing and compact profile support easy installation in industrial enclosures.
⚡ Reliable DC Power for Automation
Universal input range: Accepts 85-264VAC or 120-370VDC for flexible installation.
Stable 12V DC output: Supplies 5 Amp for low voltage control devices.
Protection built in: Includes short circuit, overload, and overvoltage protection for safer operation.
Key Features
- Delivers reliable DC power for automation circuits
- Suitable for low power industrial control loads
- 86% efficiency: helps minimize energy loss
- Class II isolation: enhances electrical safety in control systems
- Internal input filter: supports stable power conversion
- Short circuit protection: hiccup mode safeguards against output faults
- Overload protection: rated greater than 105 to 150%
- IP20 protection rating: suitable for protection from objects greater than 0.5"
- 3 year manufacturer's warranty: dependable support from IMO Precision Controls
✅ Ideal Applications
The LPS-1-060-12DC is well suited for powering PLCs, sensors, relays, process controllers, HMIs, control panels, and automation systems that require stable 12V DC power from a compact DIN rail power supply.
Performance Benefits
🔒 Electrical Safety and Isolation
Class II isolation and a high isolation voltage rating of
3000VAC / 4242VDC help improve safety in industrial installations and support dependable separation between input and output circuits.
🛡️ Protection for Demanding Systems
This power supply includes short circuit protection in
hiccup mode, rated overload protection of >105 to 150%, and overvoltage protection from 15.6-18VDC to help protect connected equipment during abnormal conditions.
🌡️ Designed for Control Panels
Free air convection cooling, IP20 protection, and a wide ambient operating range make this unit a practical choice for enclosed control cabinets and industrial automation panels.
⚠️ Installation Note
This unit is designed for
DIN rail mounting and IP20 protected use.
Proper ventilation and installation in accordance with applicable electrical codes are recommended for best performance and safety.
Typical Applications
|
Recommended System Uses
|
|
PLCs / Controllers
|
Stable 12V DC power for logic and control circuits
|
|
Sensors / Relays
|
Reliable output for field and panel devices
|
|
HMIs / Process Control
|
DC power for operator interfaces and automation controls
|
|
Control Panels
|
Compact DIN rail power distribution inside enclosures
|
This power supply is designed for industrial automation environments that require efficient, compact, and protected 12V DC power conversion.
📦 Quick Purchasing Details
Part Number:
→ LPS-1-060-12DC
Power Output:
→ 60W
Output Rating:
→ 12V DC, 5 Amp
📌 Product Note
This Class 2 DIN rail power supply is intended for industrial control and automation systems that require dependable 12V DC output from a compact single phase unit.
