The ILME MNLS-24IV32 kit is size 104.27 with 24 pole male & female screw terminal inserts, a metal top entry hood and a metal single lever base. The hood thread is size M32. Insert dimensions 104 x 27 mm. Rated IP 66. The MNLS-24IV32 features a clamping force that is constant due to the stainless steel locking system. It has a life expectancy of over 500 cycles. These connector kits can be used in many different types of applications, including automation, food processing, robotics, transportation, injection molding and material handling.

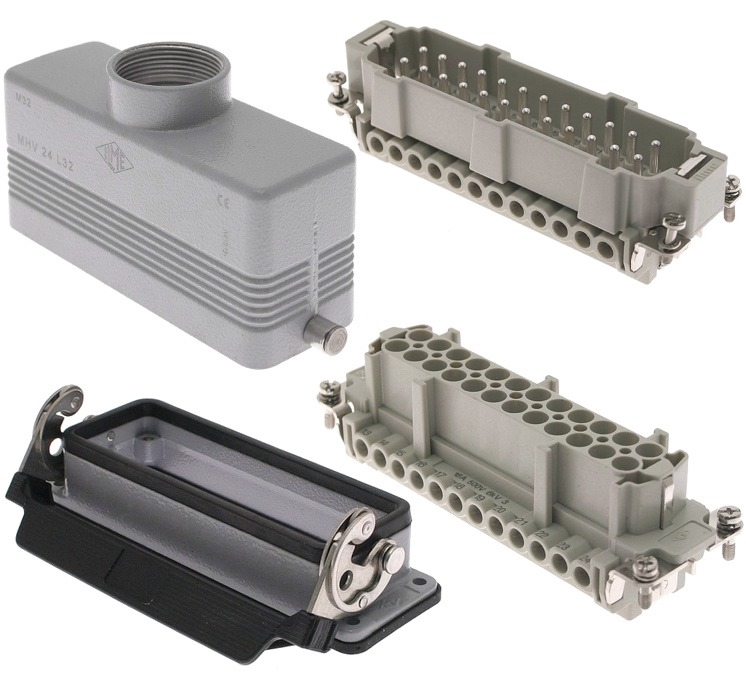

Included Components
Male Insert:

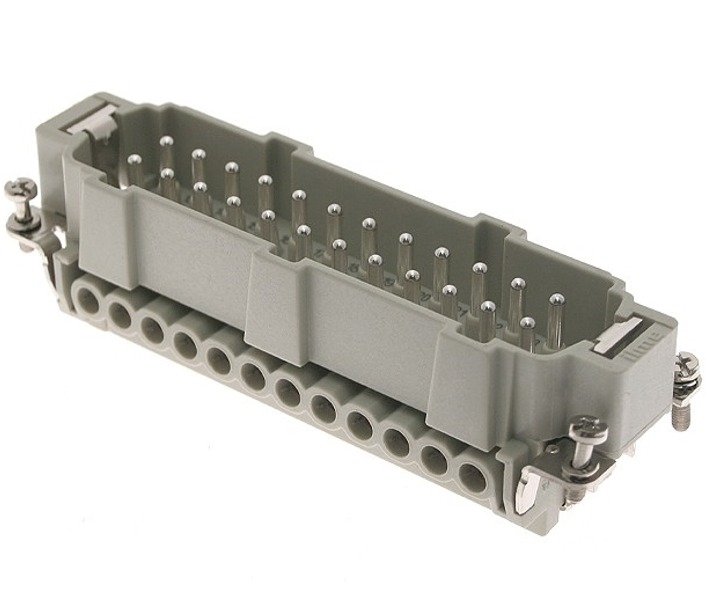

CNEM-24T

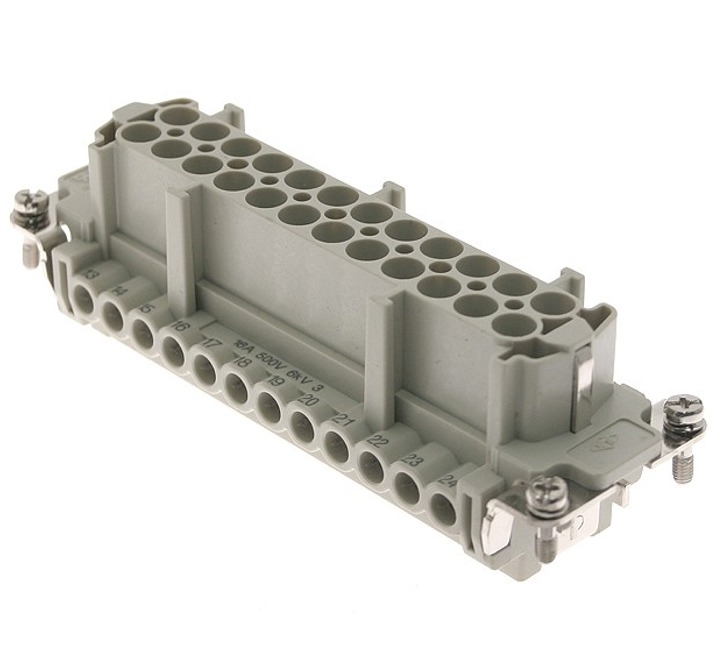

Female Insert: CNEF-24T

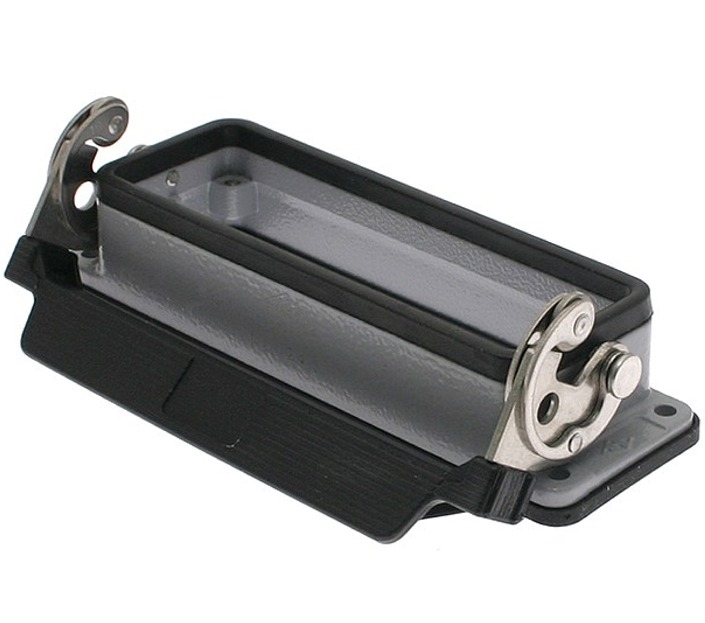

Base: CHI-24L
Hood: MHV-24L32
Specifications
- Pin Count- 24
- ILME Series- KIT
- Housing Type- Standard
- Insert Dimension- 104.27
- Enclosure Dimension- 104.27
- Termination- Screw
- Enclosure Type- Single Lever
- Mounting Style- Panel Mount
- Hood Entry- Top
- Hood Thread- M32
- Pegs- 2 Pegs
- Gasket- Yes
- Number of Entries- 1
- Temperature Range- -40 C to 125 C (-40 F to 257 F)
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
- Insert Dimensions- 104 x 27 mm (4.09" x 1.06")
- Approvals- UL, CUL
ILME 104.27 24 Pin Insert 1 Lever Base M32 Hood Kit MNLS-24IV32
|
|
|
 |
|
 |
|
