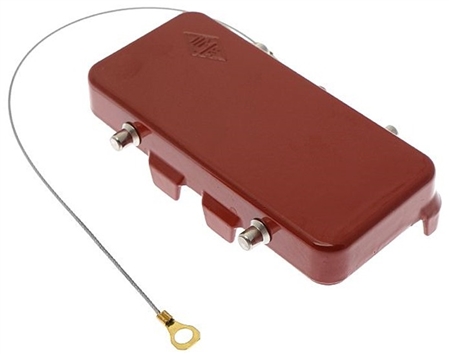

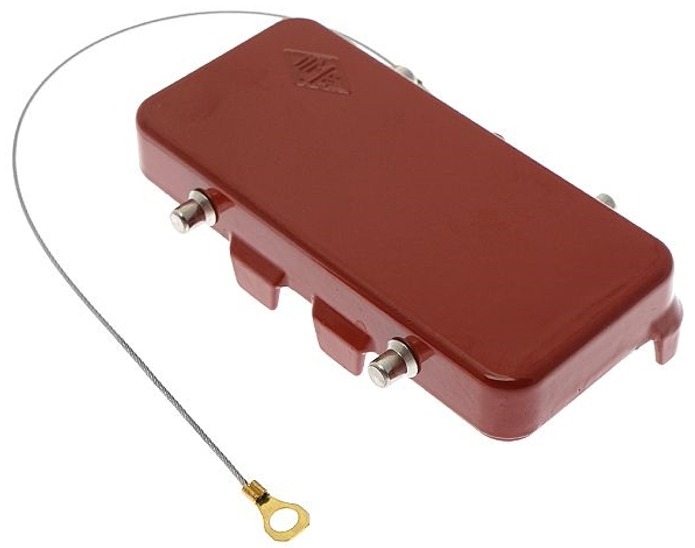

The ILME CHCR-16 high temperature 180 C metallic rectangular cover is size 77.27 and has 4 pegs. The body is die cast aluminum. Insert center distance is 77 x 27 mm (3.03" x 1.06"). CHCR16 is known by its red finish, and is made for high temp applications that standard covers can't handle. Rated IP 65.
Specifications
- Body- Die Cast Aluminum
- ILME Series- CH
- Insert Dimension- 77.27
- Enclosure Dimension- 77.27
- Cover Type- 4 Pegs
- Ingress Protection- IP 65 (Total protection from dust and low pressure water jets from any direction)
- Version- High Temperature, Metallic
- Temperature Range- -40 C to 180 C (-40 F to 356 F)
- Approvals- UL, CUL, RoHS
|
|
|
 |
|
 |
|
