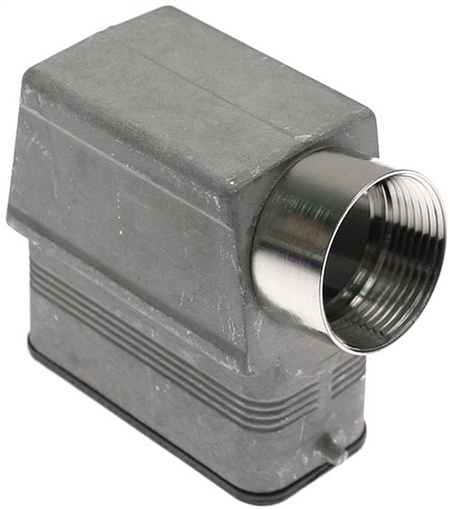

ILME EMC Metallic Hood, Size 49.16, PG 21, 2 Pegs - CZAOS-15L21

ILME CZAOS-15L21
ILME EMC Metallic Hood, Size 49.16, PG 21, 2 Pegs - CZAOS-15L21

Alternative Views:
Price: $30.84
MFG P/N: CZAOS-15L21
MFG: ILME
Weight (lbs): 0.3



Availability: Currently Unavailable
Product Code: CZAOS-15L21
Not Currently Available


Description

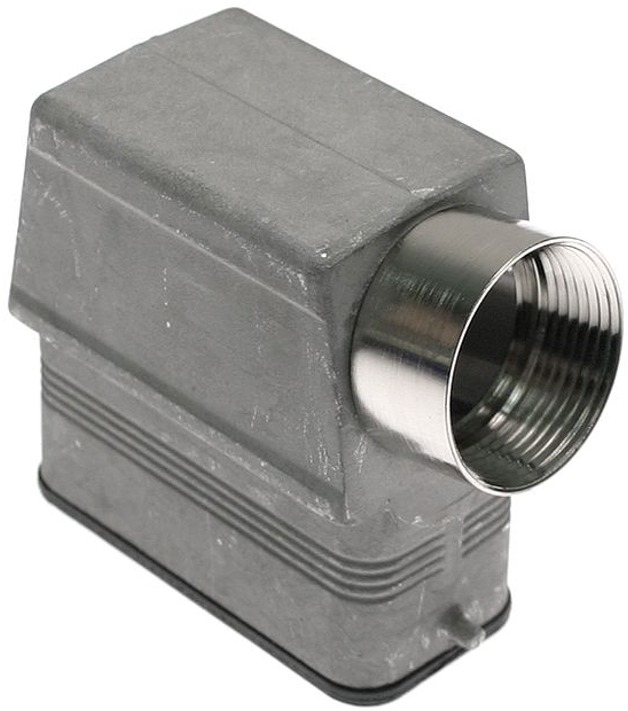

The ILME CZAOS-15L21 EMC metallic hood is size 49.16 and features 2 pegs with a PG 21 cable entry. The body is die cast aluminum with cable entry through the side. Rated IP 66 when attached and locked down. Because of its chromate treated die casting, the CZAOS-15L21 is intended to be used in applications that require electromagnetic compatibility and shielding.

Specifications

  • Body- Die Cast Aluminum
  • ILME Series- CZ
  • Insert Dimension- 49.16
  • Enclosure Dimension- 49.16
  • Housing Type- Metallic, EMC
  • Hood Type- Hoods for Single Lever
  • Mounting Style- Cable
  • Hood Entry- Side
  • Hood Thread- PG 21
  • Pegs- 2 Pegs
  • Gasket- Yes
  • Temperature Range- -40 C to +125 C (-40 F to 257 F)
  • Ingress Protection- IP 66 when attached and locked down
  • Approvals- C UR US, CCC, GL

Compatible Inserts

Series Part Number
CD CDF-15
CDM-15
CDA CDAF-10, CDAF-10X
CDAM-10, CDAM-10X
CDC CDCF-10
CDCM-10
