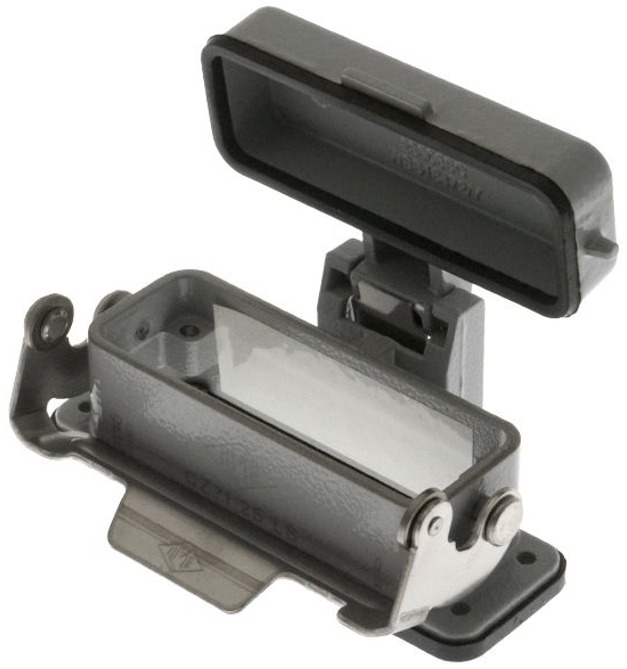

ILME CZ7I-25LS CZ7-Type Bulkhead Mount Housing, Size 66.16, Single Rigid Lever & Cover

Alternative Views:

Price: $43.85

Note: Delivery: 2-5 Business Days
MFG P/N: CZ7I-25LS
MFG: ILME
Weight (lbs): 0.28

Quantity in Stock :13

Availability: In Stock
Product Code: CZ7I-25LS

Qty:

Description

The ILME CZ7I-25LS CZ7-Type bulkhead mount standard housing is size 66.16 and features a single rigid lever & cover. The body is die cast aluminum with a stainless steel lever. Rated IP 66/67 when attached and locked down. The clamping force provided by the CZ7I-25LS stays constant due to the stainless steel locking system.

Specifications

Body- Die Cast Aluminum
Lever- Stainless Steel
ILME Series- CZ
Housing Type- Standard, Metallic
Insert Dimension- 66.16
Enclosure Dimension- 66.16
Enclosure Type- 1 Rigid Lever & Cover
Mounting Style- Bulkhead Mount
Temperature Range- -40 C to +125 C (-40 F to 257 F)
Ingress Protection- IP 66/67

Compatible Inserts

Series	Part Number
CDD	CDDF-38 CDDM-38
CDA	CDAF-16, CDAF-16X CDAM-16, CDAM-16X
CDC	CDCF-16 CDCM-16
