ILME CHP-50CS2 C-Type Surface Mount Housing, Size 66.4, 4 Pegs, PG 21

ILME CHP-50CS2 Surface Mount Housing
ILME C-Type Surface Mount Housing, Size 66.4, 4 Pegs, PG 21 - CHP-50CS2



Alternative Views:


Our Price: $60.75
MFG P/N: CHP-50CS2
MFG: ILME
Weight (lbs): 1.04


Availability:
Call for Availability
Product Code: CHP-50CS2
Qty:


Description


The ILME CHP-50CS2 C-Type standard surface mount housing is size 66.4 and features 4 pegs with two PG 21 cable entries. The body is die cast aluminum. Rated IP 65 when attached and locked down. Insert center distance: 2 x (66 x 16). The CHP-50CS2 has constant clamping force and is double size to accommodate up to two compatible inserts (the standard insert and the corresponding N or Z insert complete the polarity).

Specifications

  • Body- Die Cast Aluminum
  • Lever- Stainless Steel
  • ILME Series- CH
  • Insert Dimension- 66.4
  • Enclosure Dimension- 66.4
  • Housing Type- Metallic, Standard
  • Mounting Style- Surface Mount
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Hood Entry- Side
  • Hood Thread- PG 21
  • Pegs- 4 Pegs
  • Number of Entries- 2
  • Gasket- Yes
  • Ingress Protection- IP 65 (Total protection from dust and low pressure water jets from any direction)
  • Approvals- C UR US, CCC, GL

Compatible Inserts

Series Part Number
CD CDF-25, CDF-25Z
CDM-25. CDM-25Z
CDD CDDF-38
CDDM-38
CDA CDAF-16, CDAF-16X, CDAF-16N
CDAM-16, CDAM-16X, CDAM-16N
CDC CDCF-16, CDCF-16N
CDCM-16, CDCM-16N

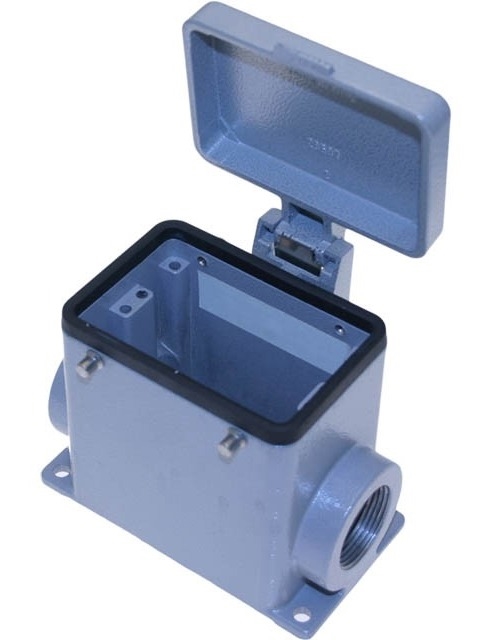

CHP-50CS2 PG 21 Cable Entry Surface Mount Base with Cover
