ILME CZAO-25L16 C-Type Metallic Hood, Size 66.16, PG 16, 2 Pegs, Metal Side Entry

Alternative Views:

Price: $28.10

Note: Delivery: 2-5 Business Days
MFG P/N: CZAO-25L16
MFG: ILME
Weight (lbs): 0.4

Quantity in Stock :5

Availability: In Stock
Product Code: CZAO-25L16

Qty:

Description

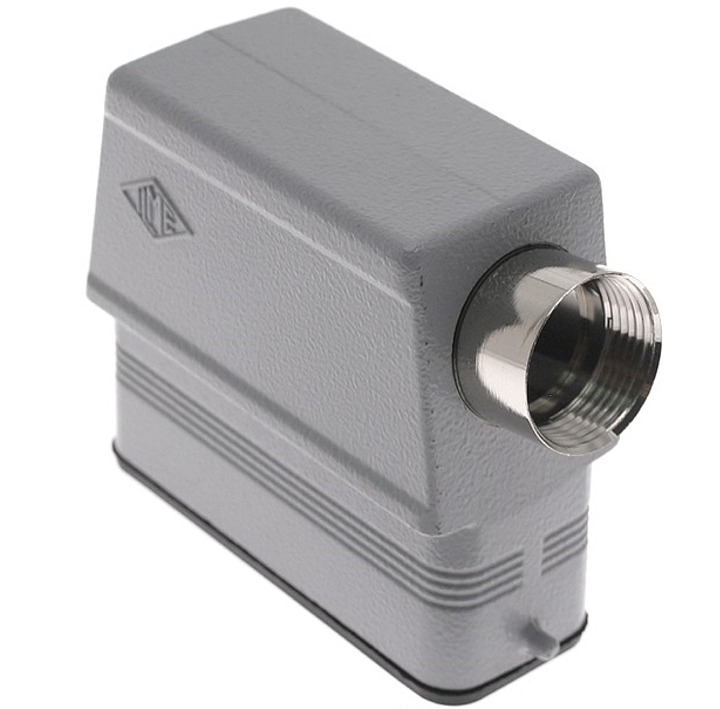

The ILME CZAO-25L16 C-Type standard metallic hood is size 66.16 and features 2 pegs with a PG 16 cable entry. The body is epoxy coated die cast aluminum with cable entry through the side. Rated IP 66 when attached to mating base. The CZAO-25L16 is durable and has a life expectancy over 500 cycles.

Specifications

Body- Epoxy Coated Die Cast Aluminum
ILME Series- CZ
Insert Dimension- 66.16
Enclosure Dimension- 66.16
Housing Type- Metallic, Standard
Enclosure Type- Hoods for Single Lever
Mounting Style- Cable
Hood Entry- Side
Hood Thread- PG 16
Pegs- 2 Pegs
Gasket- Yes
Temperature Range- -40 C to 125 C (-40 F to 257 F)
Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
Approvals- C UR US, CCC, GL

Compatible Inserts

Series	Part Number
CDD	CDDF-38 CDDM-38
CDA	CDAF-16, CDAF-16X CDAM-16, CDAM-16X
CDC	CDCF-16 CDCM-16

CZAO-25L16 66.16 PG 16 Side Entry Standard Hood
