ILME CQ-08VA C-Type Hood, Size 32.13, 2 Pegs, PG 16

ILME CQ-08VA
ILME C-Type Hood, Size 32.13, 2 Pegs, PG 16 - CQ-08VA



Alternative Views:


Price: $4.91
MFG P/N: CQ-08VA
MFG: ILME
Weight (lbs): 0.032



Availability:
In Stock
Product Code: CQ-08VA
Qty:


Description

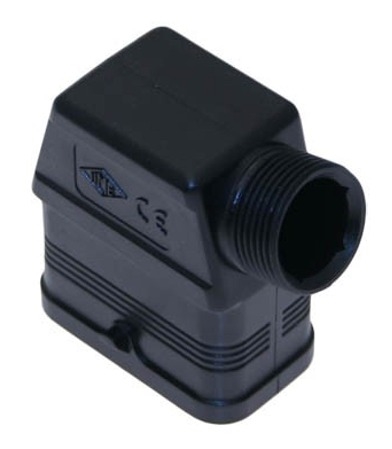

The ILME CQ-08VA C-Type rectangular insulating hood is size 32.13 and features 2 pegs with a PG 16 cable entry. The body is black thermoplastic with cable entry through the side. Insert dimensions are 32 x 13 mm. Rated IP 66/IP 67 when attached and locked down. This hood has a compact design, perfect for applications in small spaces.

Specifications

  • Body- Black Thermoplastic
  • ILME Series- CQ
  • Housing Type- Insulating, Plastic
  • Hood Dimension- 32.13
  • Hood Type- 2 Pegs
  • Hood Thread- PG 16
  • Hood Entry- Side
  • Temperature Range- -40 C to +125 C (-40 F to 257 F)
  • Mounting Style- Cable
  • Ingress Protection- IP 66/IP 67 (Total protection from dust and high pressure water jets from any direction and temporary immersion in water - 1 meter (3.29') for up to 30 minutes)
  • Insert Dimensions- 32 x 13 mm (1.25" x 1")
  • Approvals- C UR US, CCC, GL

Compatible Inserts

Series Part Number
CQ CQF-08, CQM-08
CQM-04/2, CQF-04/2

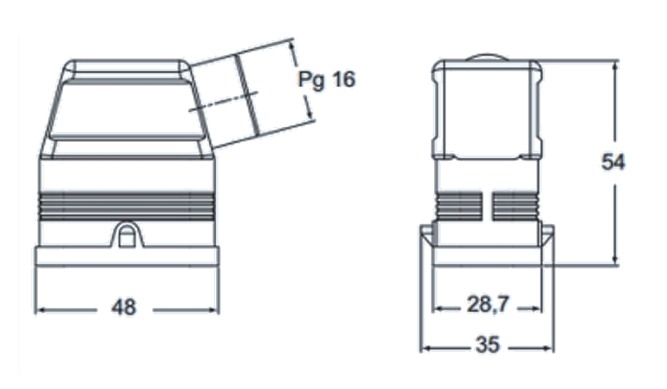

CQ-08VA PG 16 Side Entry 32.13 ILME Hood
