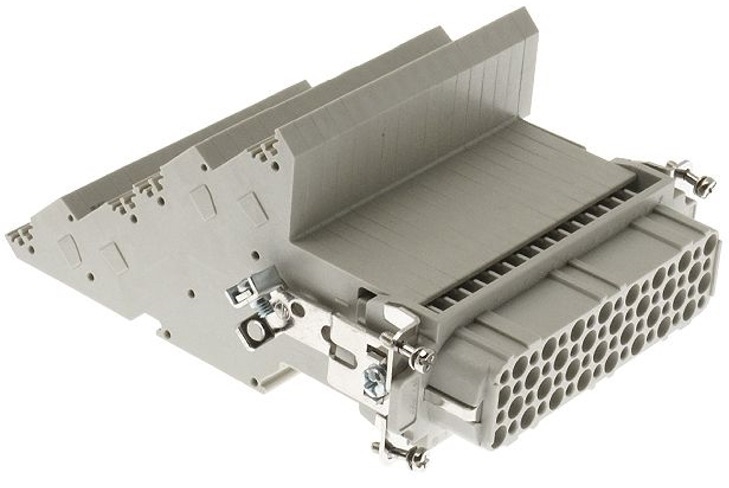

The ILME CTSF-64L CTS series standard female insert fits size 104.27 enclosures and is 64 pin + ground with a voltage rating of 600V and a rated current of 10A. The reinforced thermoplastic housing, with silver plated contacts, is self-extinguishing and is rated UL 94 V0. Rated IP 20. Termination: standard spring. The CTSF-64L is a left side mounted insert with an integrated terminal block so it can be directly wired through the back. Can be used with CD series inserts.
Specifications
- Housing- Thermoplastic
- Contacts- Silver Plated
- Gender- Female
- Pin Count- 64 + Ground
- Rated Current- 10 Amps
- Rated Voltage- 600 V
- ILME Series- CTS
- Insert Type- Standard
- Operating Temperature- -40 C to 125 C (-40 F to 257 F)
- Insert Dimension- 104.27
- Enclosure Dimension- 104.27
- Termination- Standard Spring
- Upper AWG- 14
- Lower AWG- 26
- Insulation Resistance- >= 10 GOhm
- Mechanical Life- >= 500 Cycles
- Contact Resistance- <= 4 mOhm
- Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger)
- Approvals- UL, CSA, CQC, GL, EAC
