HTP Din 43650 Form A Male, 2 Poles + Ground, 1/2" NPT

HTP 1/2NPT Form A Male Threaded Connector
HTP Din 43650 Form A Male, 2 Poles + Ground, 1/2" NPT

Alternative Views:
Price: $4.41
Note: Delivery: 2-5 Business Days
MFG P/N: BGRN02000-1/2NPTF
MFG: HTP
Ships From: Eastlake, OH
Weight (lbs): 0.1

Quantity in Stock :107


Availability: In Stock
Product Code: GSPHTP212
Qty:


Description

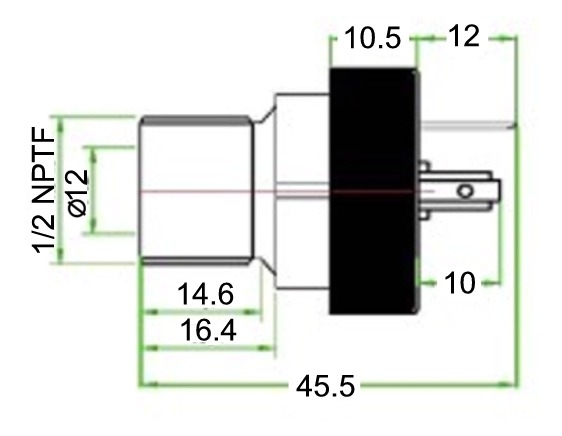

HTP BGRN02000-1/2NPTF (Order code: GSPHTP212) is a DIN 43650 Form A, Male 2 pole + Ground connector with a 1/2" NPT threaded sleeve. This base type connector has solder termination and silver plated contacts. Rated IP 65 for protection from dirt & moisture. Operating temperature: -25 C to 70 C (-13 F to 158 F). Note: See images for drawings

Specifications

  • Housing Color- Black
  • Rated Voltage- 250V

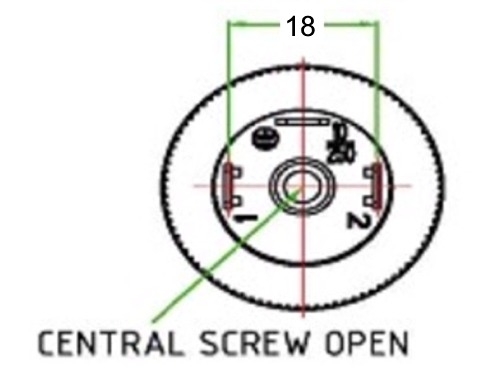

  • Contact Spacing- 18 mm
  • Number of Poles- 2 Poles + Ground
  • Overall Dimensions- 45.5mm L x 34mm Diameter
  • Type of Termination- Solder
  • Mounting- 1/2" NPT
  • Housing Material- PA66
  • Contact Material- PCuZn, Silver Plated
  • O-Ring Material- NBR
  • Operating Temperature- -25 C to 70 C
  • Protection Class- IP 65

HTP GSPHTP212 NPT Din Connector
