Overview
The

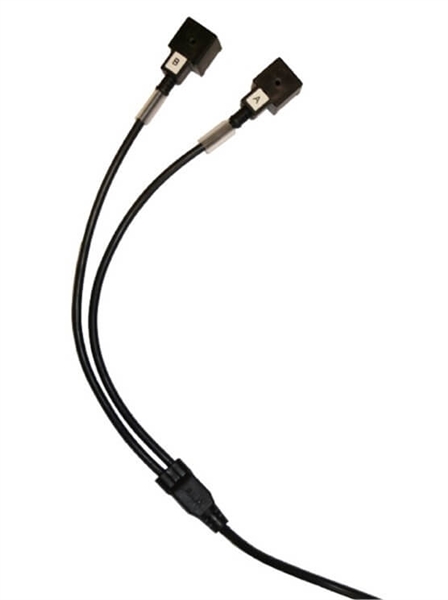

HTP CGDN02000CB11 is a DIN 43650 Form A molded cable assembly with integrated splitter designed for industrial automation and solenoid valve manifold applications. This assembly features 2 DIN connectors with 2 poles + 2 grounds and includes a durable 1 meter H05VVF PVC cable for reliable performance in demanding environments.IP67250VAC18mm Spacing
The dual ground configuration at the
12 and 6 o’clock positions allows easy cable exit rotation for flexible installation on valves and manifolds. Each connector includes an integrated NBR gasket, center screw, and molded strain relief for secure sealing and dependable operation.
⚙️ Built for Industrial Automation
Dual DIN Configuration: Simplifies manifold valve wiring and reduces installation time.
Flexible Cable Routing: Dual ground orientation supports multiple cable exit positions.
Reliable Sealing: Integrated NBR gasket and IP67 rating protect against moisture and contaminants.
Key Features
- DIN 43650 Form A design: standard industrial valve connector compatibility
- 18 mm contact spacing: standard Form A configuration
- Flexible H05VVF PVC cable: durable industrial cable construction
- 12 & 6 o’clock ground positions: easy cable exit rotation
- Molded strain relief: increased cable durability
- Includes center screws: ready for installation
✅ Why Use a DIN 43650 Splitter Assembly?
This molded splitter cable assembly helps reduce wiring complexity on valve manifolds by allowing multiple DIN solenoid valve connections from a single cable assembly while maintaining reliable sealing and vibration resistance.
Wiring Code
|
Connection
|
Wire Color
|
|
Pin #1
|
Brown
|
|
Pin #2
|
Blue
|
|
Ground
|
Yellow/Green
|
Ground is jumpered at the 12 & 6 o’clock positions for flexible cable orientation during installation.
Applications
The CGDN02000CB11 molded DIN cable assembly is commonly used in:
- Solenoid valve manifolds
- Pneumatic valve systems
- Hydraulic control systems
- Industrial automation equipment
- Process control machinery
- Fluid handling systems
⚠️ Important Installation Information
Ensure the integrated gasket is properly seated before tightening the connector.
Avoid excessive cable bending near molded sections to maximize cable life and sealing performance.
Performance Benefits
- Reduces wiring time on multi-valve systems
- Provides reliable IP67 environmental protection
- Improves cable routing flexibility
- Minimizes connection failures from vibration
- Supports dependable industrial automation operation
🔧 Industrial Ready Construction
Molded PVC cable construction combined with integrated sealing components provides dependable performance in industrial automation environments.
