GardTec GCAB705 120 mm Cabinet Cooling Fan Filter Kit, 120V, 103 CFM, Thermostat Cord
GardTec GCAB705 cabinet cooling fan kit, 120 x 120 x 38 mm 120V cooling fan, 103 CFM airflow, 39 dBA noise level, 72" thermostat power cord, fan filter assembly.
Why Choose the GardTec GCAB705 Cabinet Cooling Fan Kit?
The GardTec GCAB705 Cabinet Cooling Fan Kit includes a 120 mm 120V cooling fan, 72" 45° angle power cord with thermostat (GHP75-72P), and 120 mm plastic fan filter assembly (SC120-P15/45). The 6-foot fan cord has a 45° connector and a NEMA 1-15P plug.
The thermostat turns the fan on and off automatically, making the kit more energy efficient. The included Fantec F12038B1HT 120V cooling fan measures 120 x 120 x 38 mm, with an airflow of 103 CFM and noise level of 39 dBA. The fan filter assembly consists of a plastic fan guard, foam filter and retainer.
🌡️ Thermostat Control
Turns the fan on at 86°F and off at 75°F to reduce unnecessary runtime
🌬️ Cabinet Airflow
Moves 103 CFM through the cabinet with a 39 dBA noise level
🔌 72" Power Cord
Green SPT1 cord with a 45° connector and NEMA 1-15P plug
🧽 Fan Filter Assembly
Includes a plastic guard, foam filter, and retainer to help reduce dust intake
⚠️ Confirm Cabinet Space and Power Requirements
This cabinet cooling kit uses a 115V AC 50/60 Hz fan and a 72" thermostat power cord. Before ordering, confirm the available cabinet space, fan opening, airflow direction, power outlet location, and clearance for the fan filter assembly. The cooling fan dimensions are 120 x 120 x 38 mm.
📋 Fan Filter Assembly Details

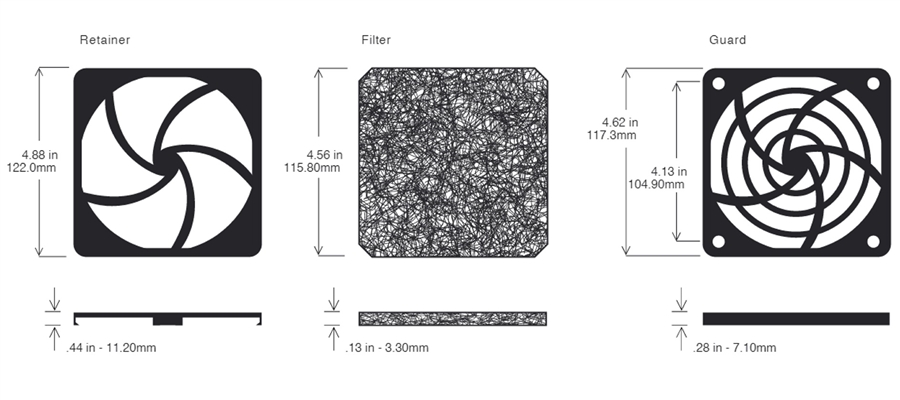

The included fan filter assembly uses a plastic UL94V-0 fan guard with Polyurethane Foam filter media. It helps block dust before it reaches the fan and includes the retainer needed for a complete filtered intake or exhaust setup. The filter media is rated at 45 PPI.
Key Features & Benefits
- Thermostat controls cooling fan operation
- Keeps cabinet temperatures at safe levels
- Helps prevent equipment damage caused by overheating
- 72" fan cord makes power connection easier
- Fan filter blocks dust from getting into the fan
- The cooling fan is UL and CUL recognized and RoHS compliant
Technical Specifications
|
Product Code
|
GCAB705
|
|
Brand
|
GardTec
|
|
Product Type
|
Cabinet Cooling Fan Kit
|
|
Cooling Fan - Dimensions
|
120 x 120 x 38 mm
|
|
Cooling Fan - Rated Voltage
|
115V AC 50/60 Hz
|
|
Cooling Fan - Operating Voltage
|
90V AC–125V AC
|
|
Cooling Fan - Air Flow
|
103 CFM
|
|
Cooling Fan - Noise Level
|
39 dBA
|
|
Fan Filter Assembly - Fan Guard Material
|
Plastic UL94V-0
|
|
Fan Filter Assembly - Filter Media Material
|
Polyurethane Foam
|
|
Fan Filter Assembly - Filter Assembly Size
|
120 mm
|
|
Fan Filter Assembly - Pores Per Inch
|
45 PPI
|
|
Fan Cord - Plug Types
|
45°, NEMA 1-15P
|
|
Fan Cord - Wire Type
|
SPT1, 18/2, 41/34 strands, 105°C, 300V, Green
|
|
Fan Cord - Rating
|
10A 125V AC
|
|
Fan Cord - Length
|
72" (1829 mm)
|
|
Fan Cord - Thermostat
|
Fan automatically turns on at 86°F (30°C), off at 75°F (24°C)
|
📋 Basic Installation Overview
1. Confirm Location: Choose a cabinet location with enough room for the fan, filter assembly, power cord, and airflow path.
2. Verify Power: Confirm access to 115V AC / 120V power and a suitable NEMA 1-15P outlet for the thermostat cord.
3. Mount Components: Install the cooling fan and included fan filter assembly so the airflow direction matches the cabinet cooling plan.
4. Connect Thermostat Cord: Route the 72" cord without sharp bends, pinch points, or contact with moving equipment.
5. Test Operation: Check fan operation, airflow, and thermostat response before placing the cabinet back into service.
📦 What's Included
• 120 mm 120V cooling fan
• 72" 45° angle power cord with thermostat (GHP75-72P)
• 120 mm plastic fan filter assembly (SC120-P15/45)
📞 Application Note
Use this GardTec cabinet cooling kit to help control heat buildup inside electrical enclosures and protect components from overheating. The thermostat cord helps reduce unnecessary fan runtime by switching the fan on at 86°F and off at 75°F.
|
|
|
 |
|
 |
|
