GardTec 80mm Wire Form Fan Guard, Flat


GardTec 80mm Fan Guard
GardTec SC80-W6 80mm Wire Form Fan Guard, Flat

Price: $0.65
Note: Ships in 3 business days
MFG P/N: SC80-W6
MFG: GardTec
Weight (lbs): 0.04

Quantity in Stock :9277


Availability:
In Stock
Product Code: SC80-W6
Qty:


Description


The GardTec SC80-W6 80mm wire form fan guard is designed for 80mm cooling fans. The smooth rounded edges maintain quiet fan operation while preserving maximum (CFM) airflow efficiency. When heat dissipation, noise and airflow are critical design elements, the SC80-W6 design allows for 23-30% greater airflow, heat removal and substantially less objectionable noise than even the optimum sheetmetal guard. The GardTec SC80-W6 is a 4 position, 80 mm. 5 ring nickel plated chrome fan guard.

  • Important accessory for a cooling fan
  • Protects fingers or objects from coming in contact with fan blades
  • More direct airflow due to rounded rings
  • Maintains airflow to prevent overheating, shutdowns or data loss
  • 95% efficient - Only a minimal amount of air is lost
  • Crosses with Qualtek 08188

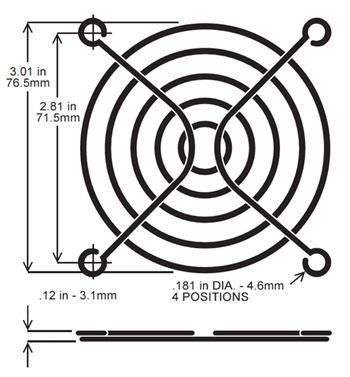

Specifications

  • Fan Guard Material: C108 Steel
  • Plating: Bright Nickel Chrome
  • Ring Diameter: 1.8mm
  • Rib Diameter: 1.8mm
  • Positions: 4
  • Fan Guard Size: 80 mm
  • Rings: 5

The dimensions of the cooling fan and fan guard need to match up in order for them to fit properly. The additional benefits to using a wire form fan guard include lengthening the cooling fan's life expectancy and reducing the amount of energy use. A cooling fan's performance can vary depending on such things as the collection of dust and the amount of airflow. Make sure the unit is turned off and unplugged before installation to reduce the chance of injury.

Wire Form Fan Guard Cross Reference

GardTec 80mm Fan Guard SC80-W6
