Deca Spring Clamp DIN Rail Ground Terminal Block, 12-28 AWG, 86 mm Width

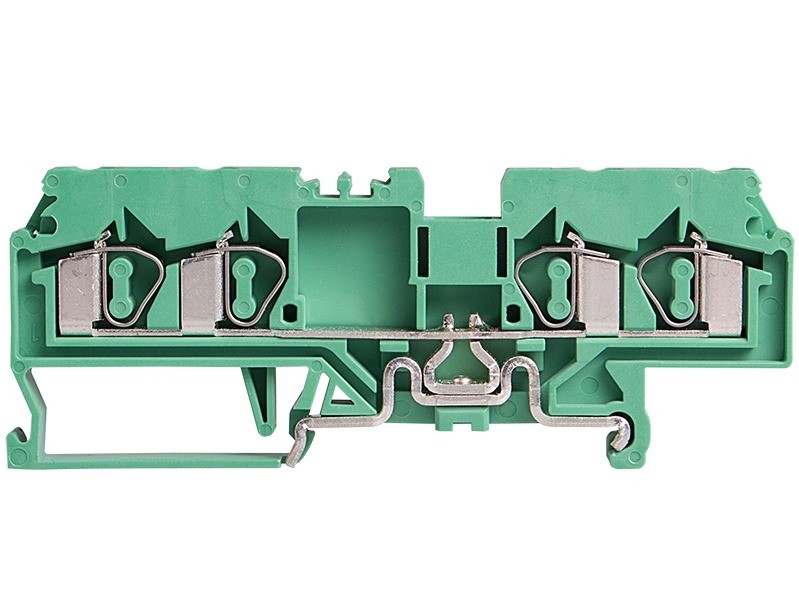

Deca SPE4/4 Spring Clamp DIN Rail Ground Terminal Block
Deca SPE4/4 Spring Clamp DIN Rail Ground Terminal Block, 12-28 AWG, 86 mm Width



Alternative Views:


Price: $4.59
Note: Please call or email [email protected] for alternatives
MFG P/N: SPE4/4
MFG: Deca
Weight (lbs): 0.1

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: SPE4-4
Qty:

Description


The Deca SPE4/4 spring clamp DIN rail ground terminal block accommodates 12-28 AWG wire. This terminal block can be easily mounted on any standard 35 mm DIN Rail. It is constructed from materials that resist flame, shock, and vibration. It features a strong contact force, with low contact resistance, and the contact points are corrosion proof. Ground type terminal blocks send the ground to the DIN rail. UL & CUL Recognized.

Specifications

  • Housing Material- Polyamide 6.6, UL94-V0
  • Housing Color- Green
  • Dimensions- 86 mm Length x 36.5 mm Height x 6 mm Width (3.38" x 1.43" x 0.23")
  • Wire Size- 12-28 AWG
  • IEC Wire Size- 0.2-4 mm2
  • Stripping Length- 9-10 mm
  • Approvals- C UR US

Deca SPE4/4 12-28 AWG DIN Rail Ground Terminal Block
