Cnlinko YT-RJ45-CPE-03-001 Rectangular RJ45 Male Plug, Metal Housing

Cnlinko YT-RJ45 Series Rectangular Metal RJ45 Male Plug

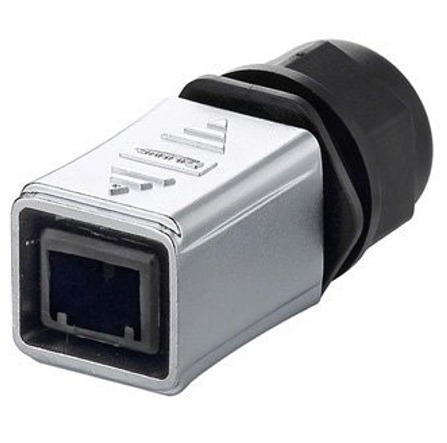

Cnlinko YT-RJ45-CPE-03-001 Rectangular RJ45 Male Plug, Metal Housing



Alternative Views:


Price: $8.41
MFG P/N: YT-RJ45-CPE-03-001
MFG: Cnlinko
Weight (lbs): 0.2



Availability:
In Stock
Product Code: YT-RJ45-CPE-03-001
Qty:

Description


The Cnlinko YT-RJ45-CPE-03-001 is a male rectangular RJ45 plug for signal applications. Accommodates 26-24 AWG cable. Rated for 1000V and 1.5 A. It is used for industrial Ethernet in audio equipment, stage equipment, DMX lighting, and other networking applications.

  • Zinc alloy shell
  • Complies with D level or Cat3e standard of EIA568B and ISO/IEC11801
  • Cat5e compatible
  • Data transfer rate 10GB/s
  • Useful in harsher locations
  • High frequency noise immunity and electromagnetic interference protection
  • Cable not included

Specifications

  • Number of Contacts- 8
  • Wire Gauge- 26-24 AWG
  • Diameter Range- 5.5-7mm
  • Rated Current- 1.5A
  • Operating Voltage- 1000V
  • Contact Resistance- <30mOhm
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- Zinc Alloy
  • Flammability Rating- UL94-V0

Cnlinko RJ45 Male Plug with Metal Housing YT-RJ45-CPE-03-001
