BreezEV EVC-L2-R40-25 is a 40 Amp wall mount electric vehicle charging unit with RFID card reader and 25 foot, 40A cable. It features Level 2 charging, which is compatible with every E-Vehicle manufacturer. Wall mounted. Service plans are also available and are sold separately. This has been discontinued, and is limited to what is left in stock
- Ideal for residential use, private commercial use, or in areas where a network software connection is not needed
- Unit does not have software capability
- RFID card reader
- 40 Amp max output, switchable down to 16 Amp
- Natural cooling
- UV resistant paint
- Can be used indoors or outdoors
- Cable has J1772 plug on one end
- Ground fault circuit interrupter (GFCI) provides safe wiring
- Comes with:
- R40 Charging unit
- 25 foot 40 Amp 10 AWG charging cable
- 5 RFID cards
- Mounting hardware
- User manual
Specifications

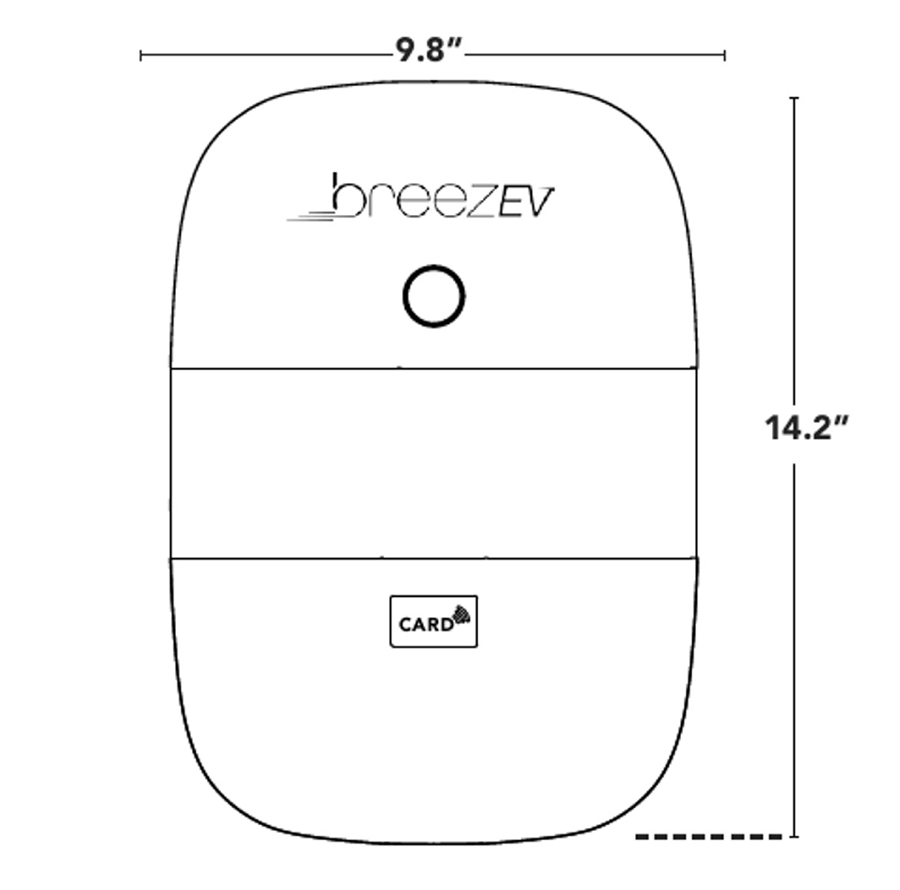

- Housing Dimensions- 9.8" Width x 14.2" Length x 3.9" Depth
- Max Output- 40 Amps / 9.6 kW
- Rated Output Current- 16 / 32 / 40 Amps
- Input Voltage- 200-240V AC / Single Phase
- Cable Length- 25 Feet
- Cable Rated Current- 40 Amp
- Cable Gauge- 10 AWG
- Connector Type- SAE J1772
- Electrical Protection- Undervoltage, Overvoltage, Residual Current, Surge Protection, Ground Fault Protection, Overcurrent, Over Temperature, Current Leakage Protection, Short Circuit
- Operating Temperature- -40 F to 122 F
- Ingress Protection- IP 65 (total protection from dust and low pressure water jets from any direction)
- Impact Resistance- IK08
- Warranty- 3 Year Manufacturer's Warranty
BreezEV EV Charger Datasheet
