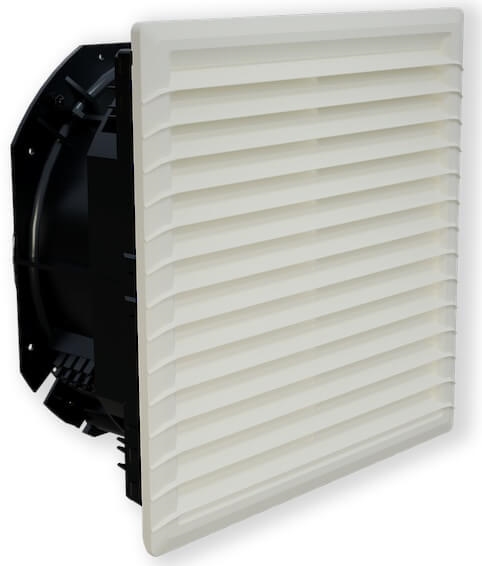

Seifert 4732052501 Fan Filter Assembly, 325mm, 230V AC, 422 CFM, IP54
Gray Seifert fan filter assembly for cooling and filtering control cabinets, automation equipment, and electronics. Rated for 422 CFM unimpeded airflow, 230V AC power, 80W consumption, and IP54 protection.
Why Choose the Seifert 4732052501 Fan Filter Assembly?
The Seifert 4732052501 is a 325mm gray fan filter assembly built to help cool electrical enclosures while filtering incoming air. It moves air at up to 422 CFM and uses thermally bonded, non-woven synthetic filter media to help reduce dust and contaminants inside control cabinets.
With 230V AC operation, 80W power consumption, and a 61 dB(A) noise level, this fan filter assembly is a cooling option for automation panels, electronics housings, and control cabinets where heat buildup can shorten component life or cause equipment failure.
🌬️ 422 CFM Airflow
Provides standard airflow for cooling compact control cabinets and electronics
⚡ 230V AC Power
Runs on 230V 50/60 Hz with 80/110W power consumption
🛡️ IP54 Protection
Helps protect against dust and splashing water from any direction
🔧 Fast Mounting
Snap-in mounting for thin panels or screw mounting for thicker panels
📋 Installation Notes
Mounting Position: Install in the lower third of the enclosure for intake airflow.
Thin Panels: For panel thickness less than 3.2mm / 0.13", push the assembly into the cutout until it clips into place.
Thicker Panels: For panel thickness greater than 3.2mm, secure the assembly with four M4 screws, not included.
Protection: IP54 standard protection helps guard against dust and splashing water.
Key Features & Benefits
- 325mm frame size
- Designed for control cabinets, automation equipment, and electronics
- Thermo-bonded, non-woven, break resistant synthetic fiber filter material
- RAL 7035 gray color
- Rated IP54 for dust and splash protection
- CE, UKCA, cURus, and cULus approved
- Comparable to Fandis FF20A230UE1
- Replaces Seifert 4830A4000
📦 Typical Applications
• Electrical control cabinets
• Industrial automation enclosures
• Electronics housings
• Panel cooling systems
• Intake ventilation openings
• Replacement fan filter installations
📄 Seifert 4732052501 Fan Filter Assembly Downloads
Review the installation manual before mounting the fan filter assembly, especially when choosing between snap-in installation and screw mounting.
Technical Specifications
|
Manufacturer
|
Seifert
|
|
Part Number
|
4732052501
|
|
Product Type
|
Fan Filter Assembly
|
|
Frame Size
|
325mm
|
|
Color
|
Gray RAL 7035
|
|
Protection
|
IP54
|
|
Overall Dimensions
|
12.81" Height x 12.81" Width x 6.5" Depth
|
|
Cut Out Dimensions
|
11.5" x 11.5"
|
|
Air Flow Unimpeded
|
422 CFM
|
|
Air Flow With Exhaust Filter
|
265 CFM
|
|
Voltage
|
230V 50/60 Hz
|
|
Rated Current
|
0.35 / 0.5 Amps
|
|
Power Consumption
|
80/110 Watts
|
|
Noise Level
|
61 dB(A)
|
|
Fuse Rating
|
1 A (T)
|
|
Connection
|
Spring Terminal
|
|
Filter Media
|
Thermo-Bonded Non-Woven Synthetic Fiber
|
|
Operating Temperature
|
-10°F to 140°F
|
|
Storage Temperature
|
-40°F to 158°F / -40°C to 70°C
|
|
Recommended Mounting Area
|
Lower Third of Enclosure
|
|
Snap-In Panel Thickness
|
Less Than 3.2mm / 0.13"
|
|
Screw Mount Panel Thickness
|
Greater Than 3.2mm
|
|
Screw Requirement
|
Use Four M4 Screws, Not Included
|
|
Approvals
|
CE, UKCA, cURus, cULus
|
|
Comparable to
|
Fandis FF20A230UE1 |
|
Replacement For
|
Seifert 4830A4000
|
|
|
|
