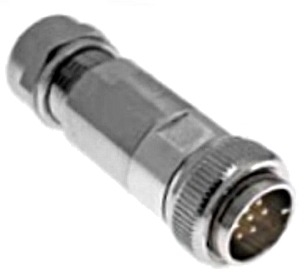

Mencom MIL-SPEC Connector, Size 18-10A, 10 Pole, Male Straight


Mencom MS18-10AMP-FW25-SC MIL-SPEC Size 18-10A Connector
Mencom MS18-10AMP-FW25-SC MIL-SPEC Connector, Size 18-10A, 10 Pole, Male Straight

Alternative Views:


Price: $37.57
Note: Please call or email [email protected] for alternatives
MFG P/N: MS18-10AMP-FW25-SC
MFG: Mencom
Weight (lbs): 0.1

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: MS18-10AMP-FW25-SC
Qty:


Description


The Mencom MS18-10AMP-FW25-SC MIL-SPEC Size 18-10A male straight hardwired connector has a 10 pin insert. The cable entry accepts 8-16 mm cable. The body is nickel plated brass with silver plated copper alloy contacts. It has a rated voltage of 600V and a rated current of 4 A. Rated IP 67. Operating temperature: -40 C to 105 C (-40 F to 221 F). The threaded couplings on Mencom MIL-SPEC equivalent connectors allow them to stand up to vibration and moisture when mated. They are made for use in the more demanding environments found in industrial and automation applications, and are compatible with existing MIL-SPEC 5015 style connectors. Connection by solder terminals.

Specifications

  • Body- Nickel Plated Brass
  • Contacts- Silver Plated Copper Alloy
  • Insert- PBT
  • Coupling Nut- Nickel Plated Brass
  • Dimensions- 3.2" Length x 1.3" Width
  • Rated Voltage- 600 V
  • Rated Current- 4 Amps
  • Pin Count- 10
  • Cable O.D. Range- M25 8-16 mm
  • Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
  • Upper AWG- 16
  • Lower AWG- 18
  • Orientation Head- Male Straight
  • Coupling Thread- Female
  • Mating Thread / Type Head- 1.1250-18UNEF
  • Nut- No

MIL-SPEC 10 Pin Male Field Wireable Connector Mencom MS18-10AMP-FW25-SC
