Mencom MINC-4MP-FWX MIN Size I Plug, 4 Pole, Male Straight, 8-17 mm, European

Mencom MIN Size I 4 Pin Male Hardwired Connector - MINC-4MP-FWX
Mencom MINC-4MP-FW MIN Size I Plug, 4 Pole, Male Straight, 5-13 mm, European

Alternative Views:

Our Price: $18.05
MFG: Mencom
Weight (lbs): 0.18

Ships in 1-2 business days
Product Code: MINC-4MP-FWX

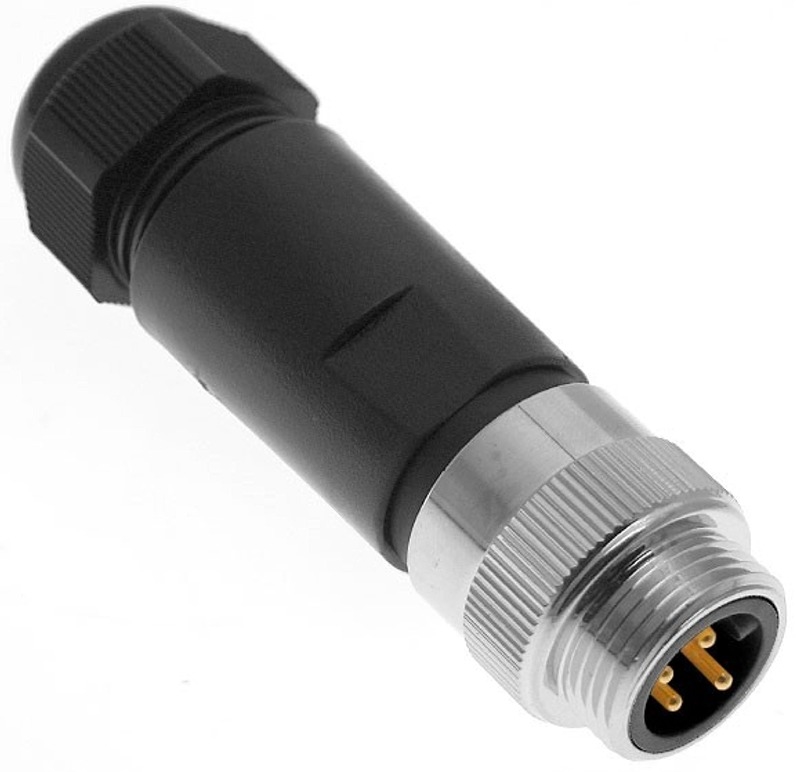

The Mencom MINC-4MP-FWX MIN Size I male straight field wireable plug features a 4 pin insert. The cable entry accommodates 8-17mm cable. The body is black polyamide with gold plated copper alloy contacts. The MINC4MPFWX has a rated voltage of 600V and a rated current of 15A. Rated IP 67. Operating temperature -40 C to 105 C (-40 F to 221 F). Connection via screw terminals. Mencom MIN Size I connectors have 7/8" mating thread & provide plug and play capability for various applications. European


  • Body- Black Polyamide
  • Insert- Black PVC
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Seal- NBR
  • Dimensions- 3.7" x 1.1"
  • Rated Voltage- 600 V
  • Rated Current- 15 Amps
  • Pin Count- 4
  • Upper AWG- 14
  • Lower AWG- 22
  • Ingress Protection- IP 67
  • Orientation Head- Male Straight
  • Coupling Thread- Male
  • Mating Thread/Type Head- 7/8-16UN2
  • Nut- No
  • Cable O.D. Range- 8-17 mm
  • Approvals- UL & CUL listed

Mencom 8-17mm Male European Mini Field Wireable Connector MINC-4MP-FWX
