Mencom LP3-GF-2USB-AFAF-R Low Profile Panel Interface Connector, GFCI Duplex outlet, 2 USB-AFAF, 3A Reset, Double Size Housing

Mencom LP3-GF-2USB-AFAF-R Low Profile Programming Port
Mencom LP3-GF-2USB-AFAF-R Low Profile Panel Interface Connector, GFCI Duplex outlet, 2 USB-AFAF, 3A Reset, Double Size Housing

Alternative Views:
Price: $266.50
Note: Please call or email [email protected] for alternatives
MFG P/N: LP3-GF-2USB-AFAF-R
MFG: Mencom
Weight (lbs): 1.6

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: LP3-GF-2USB-AFAF-R
Qty:


Description

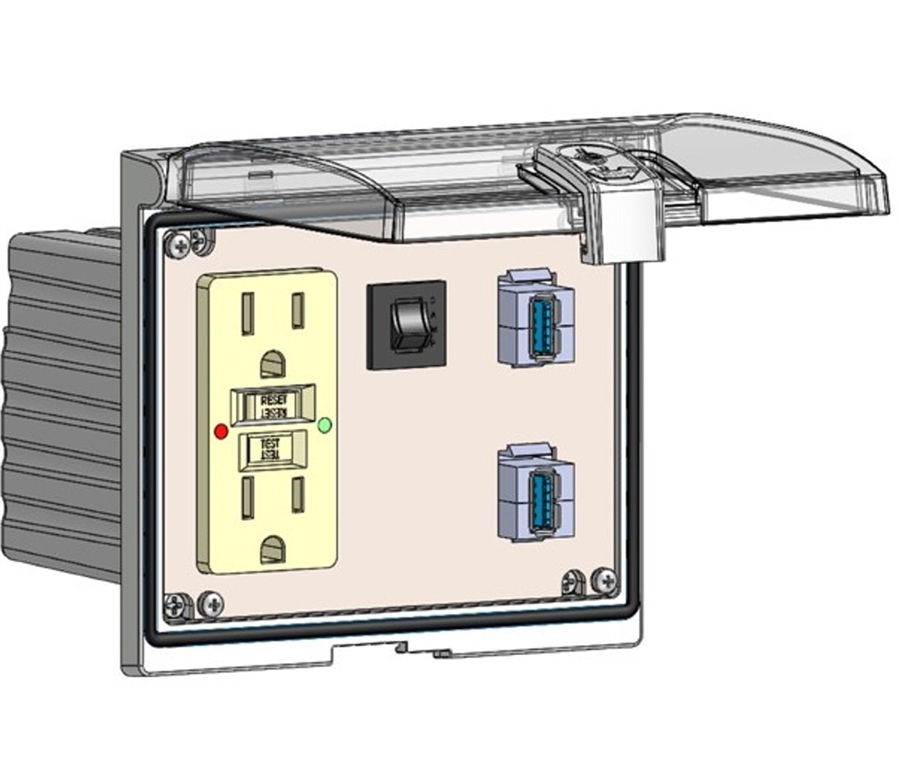

The Mencom LP3-GF-2USB-AFAF-R panel interface connector (PIC) features a 120V GFCI Duplex Receptacle, two Form A to Form A Female/Female USB ports, and a 3 Amp resettable fuse in a double size housing. Housing is rated IP 65 and features a sliding lock mechanism that can be opened using a flat head screwdriver. Mencom PICs mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The low profile housing is 75% lower than a standard PIC, & has a clear cover to view the components inside.

Specifications

  • Body- Nickel Plated Zinc
  • Front Cover- Polycarbonate
  • Latch & Lock- PBT
  • Back Cover- Polypropylene
  • Gasket- Nitrile/UL70
  • Housing- Double Cover Low Profile Housing
  • Power Ports- 120V GFCI Duplex Receptacle
  • USB- (2) Form A to Form A Female / Female
  • Fuse- 3 Amp Resettable
  • Screw Size- M3
  • Torque- 0.9 N-m (0.675 Lb-Ft)
  • Panel Thickness- 5mm max.
  • UL Rating- UL Type 4, (4X), 12
  • IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)
