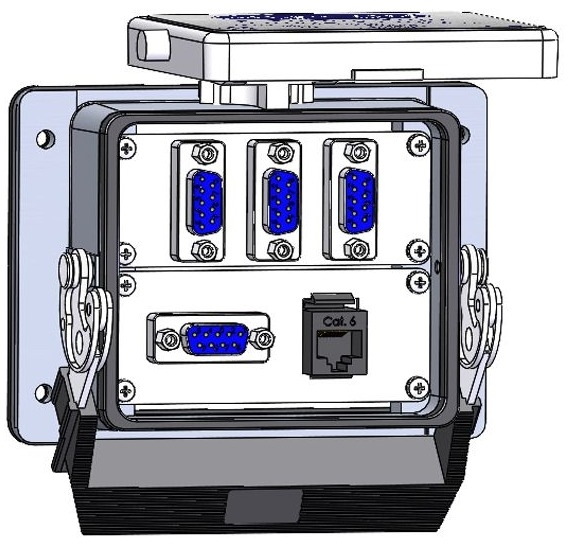

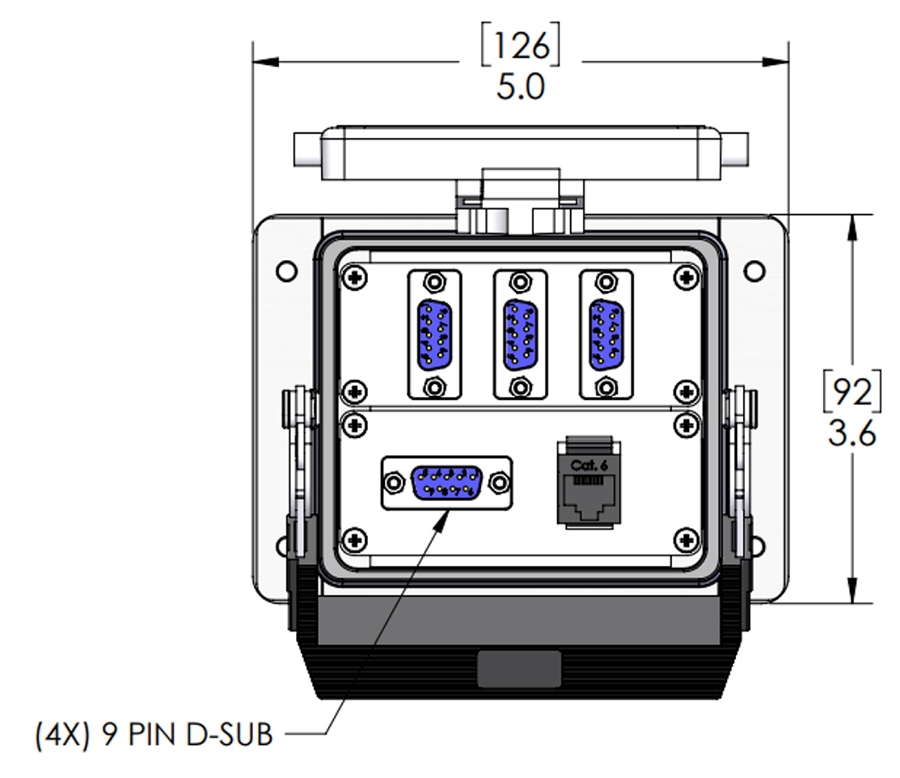

The Mencom DB09-4-RJ45-32 panel interface connector (PIC) features four 9 Pin D-Subs and an RJ45 Ethernet port in a size 32 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch. Mencom PICs mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet.
Specifications
- Body- Epoxy coated die cast aluminum
- Gasket- Thermoplastic elastomer
- Handle- Polyamide
- Levers- Stainless Steel
- Housing- Size 32 Bulkhead Housing
- D-Sub- (4) 9 Pin Female Exterior / Male Interior
- RJ / Ethernet- RJ45
- Operating Temperature- 14 F to 140 F
- IP Rating- IP 65 (Total protection from dust and low pressure water jets from any direction)
|
|
|
 |
|
 |
|
