Major 5001 WIRE STRIPPER BLADES - 5001-30021OE
Major 5001 WIRE STRIPPER BLADES - 5001-30021OE
Major 5001 WIRE STRIPPER BLADES - 5001-30021OE

Price: $152.67
Note: Delivery: 2-5 Business Days
MFG P/N: 5001-30021OE
MFG: Major
Ships From: Eastlake, OH
Weight (lbs): 1

Quantity in Stock :25


Availability: In Stock
Product Code: 5001-30021OE
Qty:

Description

The Major 5001-30021OE is a set of precision made cutting blades for the Major 5001 wire stripping machine.
  • Consists of 4 cutting blades and 4 screws.
  • These blades are located on the cutting head behind the front cover and clamping head.

Major 5001 Wire Stripper Replacement Blades
Additional Product Information

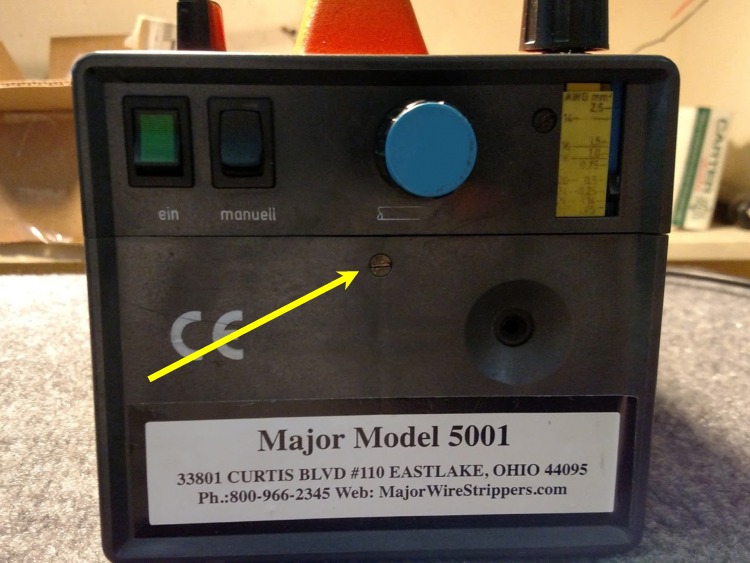

Step #1: Begin by unscrewing the lower faceplate screw.

Step #2: Lower faceplate to reveal the clamping head & arm
Step #3: Remove the clamping head arm screw and (2) clamping head screws
Step #4: Remove the (4) stripping blade screws.

Step #5: Replace blades marked 1 first and then 2 over top. Orientate blades so that the numbers are facing out. Make sure the shoulder of the screw has seated properly and is not hung up on blade edge.
