Sealcon M23 Right Angle Panel Mount Signal Connector, 17 Pole

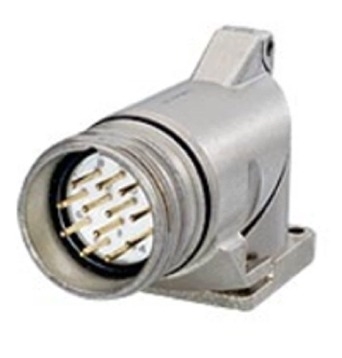

Sealcon 17 Pole Elbow Panel Mount M23 Connector



Alternative Views:


Price: $17.26

MFG P/N: M23-RAM17
MFG: Sealcon



Availability:
In Stock
Product Code: M23-RAM17

Housings


Inserts


Crimp Contacts



Qty:
Description


The Sealcon M23 right angle panel mounted signal connector features a 17 pole insert and male threads. The body is die cast zinc with a nickel plated brass surface and gold plated brass alloy contacts. Housings can be fixed or rotating, depending on the part. Housings, male/female inserts & optional crimp contacts are chosen based on the needs of the customer. Male or female inserts can be used in the same type of housing, increasing modularity. Operating temperature: - 40 C to 125 C (- 40 F to 257 F). Rated IP 67 / IP 69K, NEMA 4x. Note: Image is for reference, actual part may differ.

Features

  • No tools are required to install or remove crimp contacts - Reduced chance of damage to the insert or contacts due to repeated installation or removal. The Euro Lock System inside the insert keeps the contacts in position
  • Crimp contacts machined
  • Solder contacts for dip soldering for PC boards
  • SLS (Spring Loaded Sockets) for high vibration applications - Socket contacts have an integrated spring to increase the reliability of the connection and add support, up to 50g of shock and 10g continuous force.
  • Color coded spacers for male and female inserts
  • UL & CSA approvals
  • RoHS & Deca BDE compliant

HOW TO ORDER

  1. Select a housing - Panel connector housings come in 5 different types. Fixed housings have easy fixation with M2.5 screws. The 300° rotating housings have a 1.5 mm locking screw at flange. (300° rotating flange type- 4 holes .11" (2.7 mm))
  2. Select an insert - 17 pole male (pin) and female (socket) inserts are available with dip solder contacts or no contacts (for crimping).
  3. Select optional crimp contacts - Choose from either 1mm pin or socket crimp contacts (sold in groups of 17). Please Note: Separate contacts are not necessary for inserts with soldered contacts (choose the No Contacts Required option)

Right Angle Sealcon 17 Pole M23 Signal Connector

Additional Product Information
Inserts
Contact Diameter- 1mm
Nominal current- 8 A
Nominal voltage (Degree of protection 2)- 400 V
Nominal voltage (Degree of protection 3)- 160 V
Test voltage (Breakdown voltage)- 1500 V
Insulation resistance- >10 MOhm
Max. contact resistance- 3 mOhm
Crimp Contacts Crimp Range
7.010.901.031: 0.08 mm2 - 0.56 mm2, AWG 28 - AWG 20
7.010.901.001: 0.14 mm2 - 1.0 mm2, AWG 26 - AWG 17
7.010.901.012: 0.08 mm2 - 0.56 mm2, AWG 28 - AWG 20
7.010.901.002: 0.34 mm2 - 1 mm2, AWG 22 - AWG 17
7.010.901.021: 1 mm2 - 1.5 mm2, AWG 17 - AWG 16
7.010.901.022: 0.75 mm2 - 1.5 mm2, AWG 18 - AWG 16
