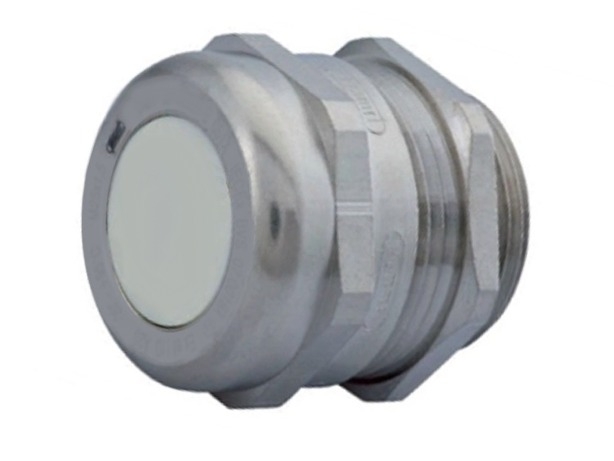

Sealcon CD07AP-BR 1/4" NPT / PG 7 Dome Solid Insert Cord Grip

Sealcon CD07AP-BR
Sealcon CD07AP-BR 1/4" NPT / PG 7 Dome Solid Insert Cord Grip



Alternative Views:


Our Price: $5.53
MFG P/N: CD07AP-BR
MFG: Sealcon
Weight (lbs): 0.02

Product Code: CD07AP-BR
Qty:


Description


Sealcon CD07AP-BR high quality nickel plated brass cord grips are designed for the toughest applications. Also known as Hummel 1.697.0799.01. Sold Individually. Locking nut sold separately

Specifications

  • Thread Size: 1/4" NPT / PG 7
  • Through Hole Diameter: .49" (12.5 mm)
  • Body Length: .75" (19 mm)
  • Thread Length: .20" (5 mm)
  • Wrench Flat Dome: .55" (14 mm)
  • Wrench Flat Body: .55" (14 mm)
  • Number of Holes: N/A
  • Hole Diameter: N/A

Features

  • Nickel Plated Brass Material with Elastomer Seal, Nylon 6/6 Splined Bushing & Buna-N O-Ring
  • Rated IP 65 (NEMA 4x)
  • Achieving IP 68 (NEMA 6) is possible, provided that there is an ideal fit
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE approval

Approvals

  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL Registered
  • CE
  • German Lloyd
  • PCT

Sealcon 1/4" NPT / PG 7 Nickel Plated Brass Multi-hole Cord Grips, Strain Relief Fittings or Cable Glands are used in almost any industry and are made to attach cable or wire to various applications. This fitting provides a NEMA 4x (IP 65) rating. To achieve this rating, the cable cannot be less than 80% of the diameter of the hole. There also cannot be more than .04" (1 mm) of difference between the diameter of the cable and the diameter of the hole. It is possible to reach the NEMA 6 (IP 68) submersible rating, provided that there is an ideal fit. The ACME thread on the CD07APBR dome top is self locking and makes sure that the overlapping splines apply an even seal. This keeps the form seal from being pulled out of the fitting & provides pull-out protection for your cable so it does not cause damage.

Sealcon PG 7 Solid Insert Cord Grip
