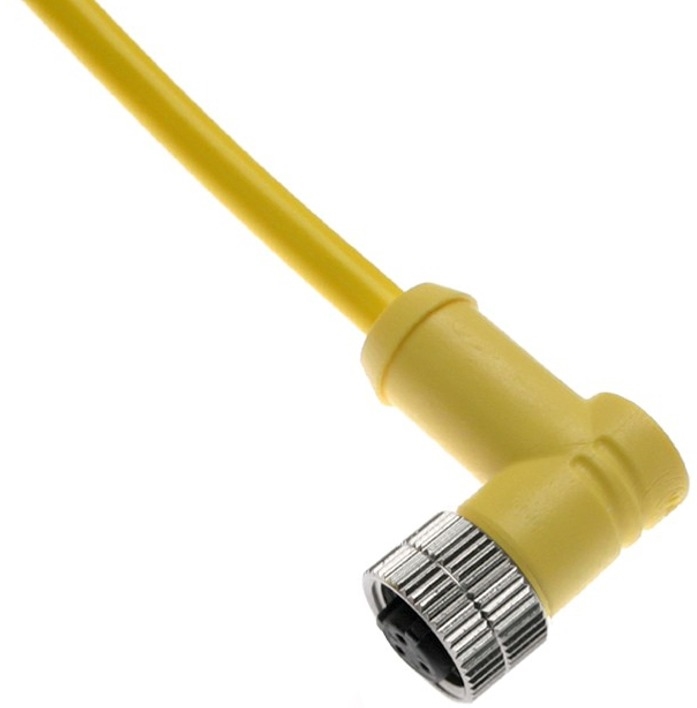

Mencom MAC-6FP-2M-R 1/2-20 Cordset, 6 Pole, Female Right Angle, 2 M

Mencom Micro AC 1/2-20 Cordset - MAC-6FP-2M-R
Mencom MAC-6FP-2M-R 1/2-20 Cordset, 6 Pole, Female Right Angle, 2 M



Alternative Views:


Price: $33.31
Note: Please call or email [email protected] for alternatives
MFG P/N: MAC-6FP-2M-R
MFG: Mencom
Weight (lbs): 0.26

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: MAC-6FP-2M-R
Qty:


Description


The Mencom MAC-6FP-2M-R Micro AC (1/2-20) female right angle cordset has a 6 pin insert, 22 AWG wire and 2 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MAC cordsets use an 1/2-20 coupling nut and provide plug and play solutions for various applications. While comparable in shape and size, they have a different wiring color code than MDC series M12 connectors.

Pin #1 - Red/White
Pin #2 - Red
Pin #3 - Green/Yellow
Pin #4 - Red/Yellow
Pin #5 - Red/Black
Pin #6 - Red/Blue

Specifications

  • Body- Yellow PVC
  • Insert- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 22/6 AWM 2661 Yellow PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 4 Amps
  • Wire Gauge- 22
  • Pin Count- 6
  • Cable Length- 2 meter (6.56 ft)
  • Cable O.D.- 0.24
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Female Right Angle
  • Coupling Thread- Female
  • Mating Thread / Type Head- 1/2-20UN2
  • Nut- No
  • Approvals- UL & CUL Listed

MAC-6FP-2M-R 6 Pin Female Right Angle 2 Meter 1/2-20 Molded Cable
