Mencom 1/2-20 Cordset, 3 Pole, Female Right Angle, 5 M


Mencom Micro AC Cordset - MAC-3FP-5M-R
Mencom MAC-3FP-5M-R 1/2-20 Cordset, 3 Pole, Female Right Angle, 5 M

Alternative Views:


Price: $36.13
Note: Please call or email [email protected] for alternatives
MFG P/N: MAC-3FP-5M-R
MFG: Mencom
Weight (lbs): 0.4



Availability:
Out of Stock
Product Code: MAC-3FP-5M-R
Qty:


Description


The Mencom MAC-3FP-5M-R Micro AC (1/2-20) female right angle cordset features a 3 pin insert, 22 AWG wire and 5 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MAC cordsets use an 1/2-20 coupling nut and provide plug and play solutions for various applications. While similar in appearance, they use a different wiring color code than MDC series M12 connectors, as well as a dual C-coded keyway.

Pin #1 - Green/Yellow
Pin #2 - Red/Black
Pin #3 - Red/White

Specifications

  • Body- Yellow PVC
  • Insert- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 22/3 AWM Yellow PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 4 Amps
  • Wire Gauge- 22
  • Pin Count- 3
  • Cable Length- 5 meter (16.4 ft)
  • Cable O.D.- 0.2
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Female Right Angle
  • Coupling Thread- Female
  • Mating Thread / Type Head- 1/2-20UN2
  • Nut- No
  • Approvals- UL & CUL Listed

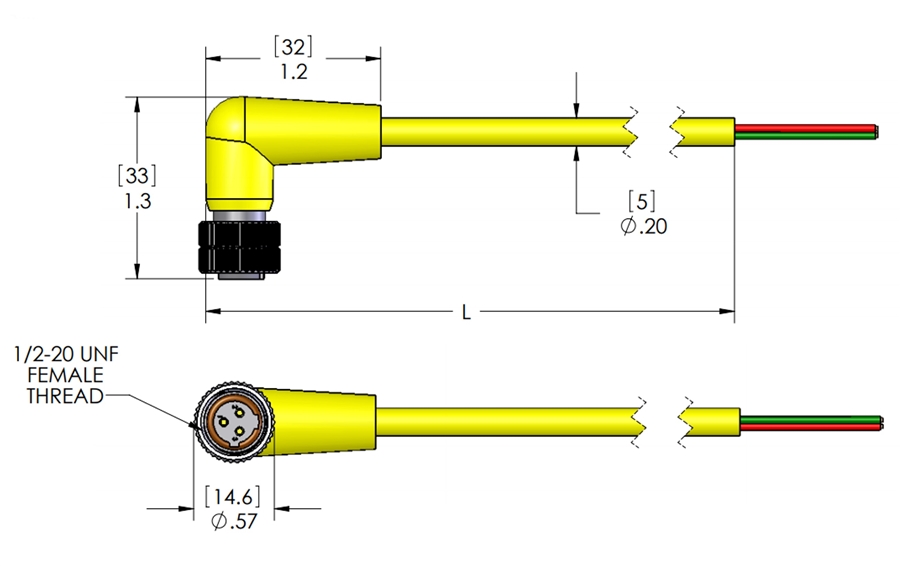

Mencom MAC-3FP-5M-R 3 Pin Female Right Angle 1/2-20 Molded Cable
