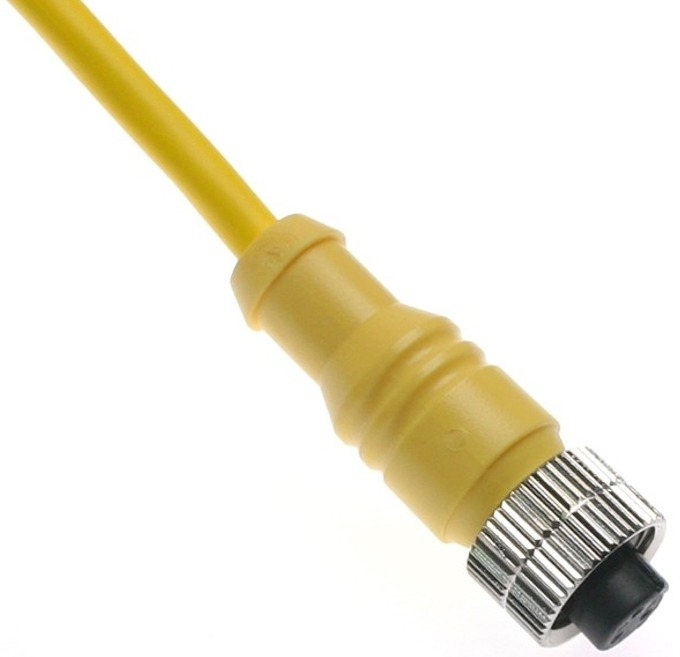

The Mencom MAC-2FP-10M Micro AC (1/2-20) female straight cordset features a 2 pin insert, 22 gauge wire and 10 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MAC cordsets use an 1/2-20 coupling nut and provide plug and play solutions for various applications. While comparable in appearance, they have a different wiring color code than MDC series M12 connectors.
Pin #1 - Brown
Pin #2 - Blue
Specifications
- Body- Yellow PVC
- Insert- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- 22/2 AWM Yellow PVC Jacket
- Rated Voltage- 300 V
- Rated Current- 4 Amps
- Wire Gauge- 22
- Pin Count- 2
- Cable Length- 10 meter (32.8 ft)
- Cable O.D.- 0.2
- Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head- Female Straight
- Coupling Thread- Female
- Mating Thread / Type Head- 1/2-20UN2
- Nut- No
- Approvals- UL & CUL Listed
Mencom MAC-2FP-10M 2 Pin Female 10 Meter 1/2-20 Molded Cable
