Mencom MAC-2FP-4M 1/2-20 Cordset, 2 Pole, Female Straight, 4 M

Mencom Micro AC Cordset - MAC-2FP-4M
Mencom MAC-2FP-4M 1/2-20 Cordset, 2 Pole, Female Straight, 4 M



Alternative Views:


Our Price: $19.87
MFG P/N: MAC-2FP-4M
MFG: Mencom
Weight (lbs): 0.32


Availability:
Call for Availability
Product Code: MAC-2FP-4M
Qty:


Description

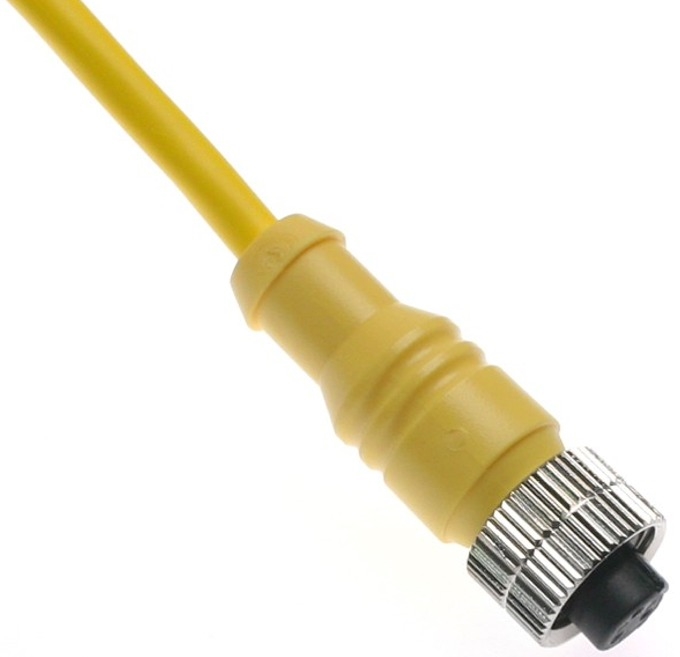

The Mencom MAC-2FP-4M Micro AC (1/2-20) female straight cordset features a 2 pin insert, 20 gauge wire and 4 meters of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MAC cordsets use an 1/2-20 coupling nut and provide plug and play solutions for various applications. While comparable in appearance, they have a different wiring color code than MDC series M12 connectors.

Specifications

  • Body- Yellow PVC
  • Insert- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 22/2 AWM Yellow PVC Jacket
  • Rated Voltage- 300 V
  • Rated Current- 4 Amps
  • Wire Gauge- 20
  • Pin Count- 2
  • Cable Length- 4 meter (13.12 ft)
  • Cable O.D.- 0.2
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Female Straight
  • Coupling Thread- Female

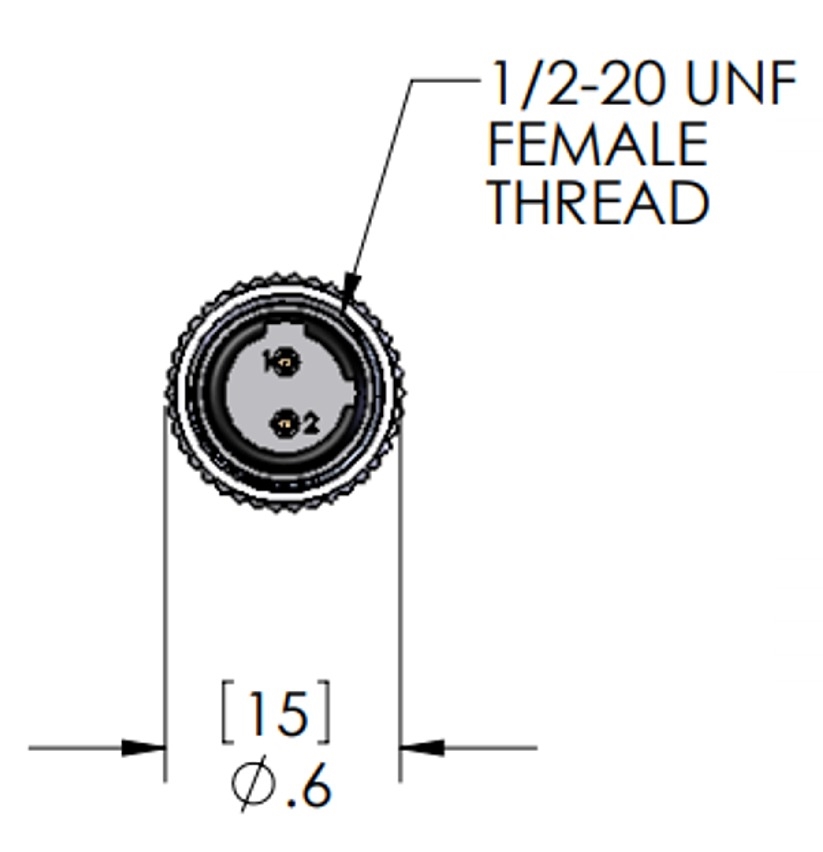

  • Mating Thread / Type Head- 1/2-20UN2
  • Nut- No
  • Approvals- UL & CUL Listed

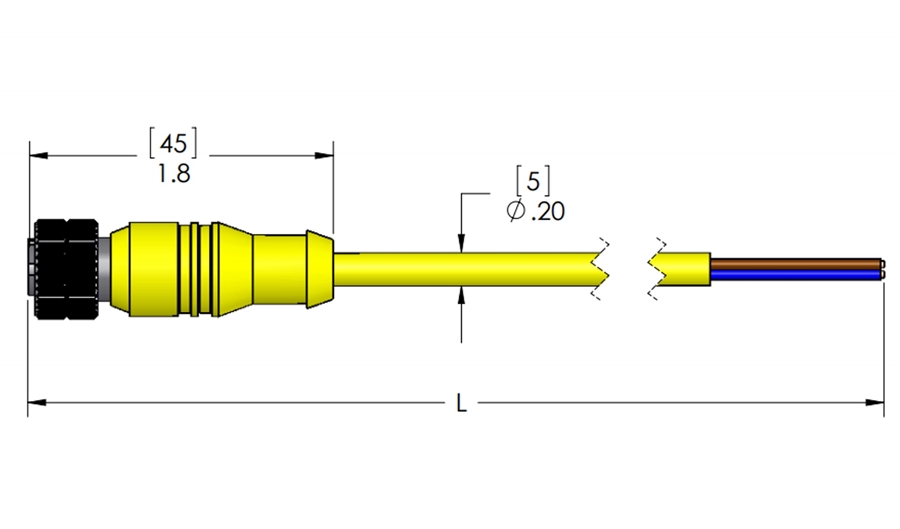

Mencom MAC-2FP-4M 2 Pin Female 4 Meter 1/2-20 Molded Cable

Additional Product Information
Pin #1 - Brown
Pin #2 - Blue
