Mencom PCG-3/4 3/4" NPT 0.512- 0.708" (13 - 18 mm) Cable Gland

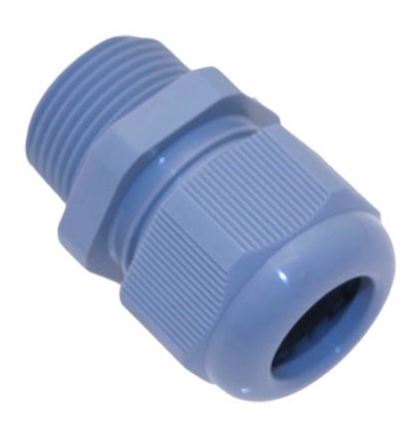

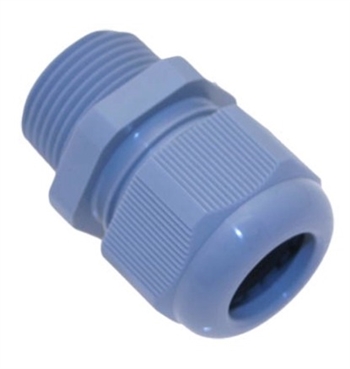

PCG-3/4 3/4" NPT Gray Strain Relief Fitting
Mencom PCG-3/4 3/4" NPT 0.512- 0.708" (13 - 18 mm) Cable Gland

Alternative Views:
Price: $2.21
MFG P/N: PCG-3/4
MFG: Mencom
Weight (lbs): 0.0233

Quantity in Stock :1246


Availability: In Stock
Product Code: PCG-3-4
Qty:


Description Technical Specs


Mencom PCG-3/4 gray plastic cable gland has 3/4" NPT thread. Accommodates 0.512" - 0.708" (13 - 18 mm) cable. This strain relief fitting is designed to be water and air tight, and is compatible with ILME rectangular connectors. The PCG-3/4 plastic cord grip is ideal for many applications, in order to provide a liquid tight connection for cables that pass through enclosures. Sold Individually. Locknut sold separately. Rated IP 68 against exposure to dirt and water. Temperature Range: -20 C to 100 C. UL & CUL Recognized.

  • Provides strain relief for cables
  • Creates a liquid tight seal to keep out dust and water
  • IP 68-5 BAR rating similar to NEMA 6P
  • Effective under water for up to 5 atmospheres of pressure
  • Grommet maintains the seal around cable

Mencom NPT Size Cable Gland PCG-3/4
Additional Product Information
An O-Ring is not necessary to get an IP 68 rated seal against the enclosure. Crush ribs underneath the hex nut form the seal. Designed for round cables, not made for use with flat or ribbon cables
