Mencom MAC-2MR-2 1/2-20 Receptacle, 2 Pole, Male, 1/2" NPT, 1 Ft

Mencom 2 Pin Micro AC Receptacle - MAC-2MR-2

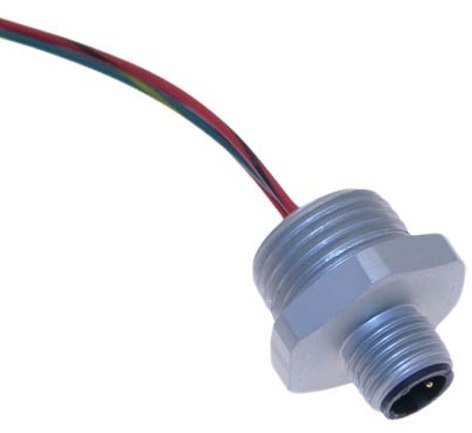

Mencom MAC-2MR-2 1/2-20 Receptacle, 2 Pole, Male, 1/2" NPT, 1 Ft



Alternative Views:


Our Price: $8.79
MFG P/N: MAC-2MR-2
MFG: Mencom
Weight (lbs): 0.05


Availability:
Call for Availability
Product Code: MAC-2MR-2
Qty:


Description


The Mencom MAC-2MR-2 Micro AC (1/2-20) male straight receptacle features a 2 Pin insert, 22 AWG wire, 12" lead length and 1/2" NPT mounting thread. The shell is clear anodized aluminum with gold plated copper alloy contacts. Wire is rated at 300V. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MAC receptacles use an 1/2-20 coupling nut and have a dual C-coded keyway. While similar in appearance to the MDC M12 receptacles, they do have a different wiring color code.

Specifications

  • Shell- Clear Anodized Aluminum
  • Insert- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Wire Gauge- 22 AWG UL1007/1569
  • Rated Voltage- 300 V
  • Rated Current- 4 Amps
  • Wire Gauge- 22
  • Pin Count- 2
  • Lead Length- 1 Foot (0.3 M)
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Male Straight
  • Coupling Thread- Male
  • Mounting Thread- 1/2" NPT
  • Mating Thread / Type Head- 1/2-20UN2
  • Mounting Style- Front Mount
  • Nut- No
  • Termination- Discrete
  • Approvals- UL & CUL Listed

2 Pin 1/2" NPT Male 1/2-20 Receptacle MAC-2MR-2

Additional Product Information
Pin #1 - Brown
Pin #2 - Blue
