Macromatic TCF2F Over Temperature & Seal Leak Relay, 120V, 7A SPDT

Macromatic TCF2F Over Temperature & Seal Leak Relay
Macromatic TCF2F Over Temperature & Seal Leak Relay, 120V



Alternative Views:


Price: $290.58
MFG P/N: TCF2F
MFG: Macromatic
Weight (lbs): 0.3

Quantity in Stock :1


Availability:
In Stock
Product Code: TCF2F
Qty:

Description

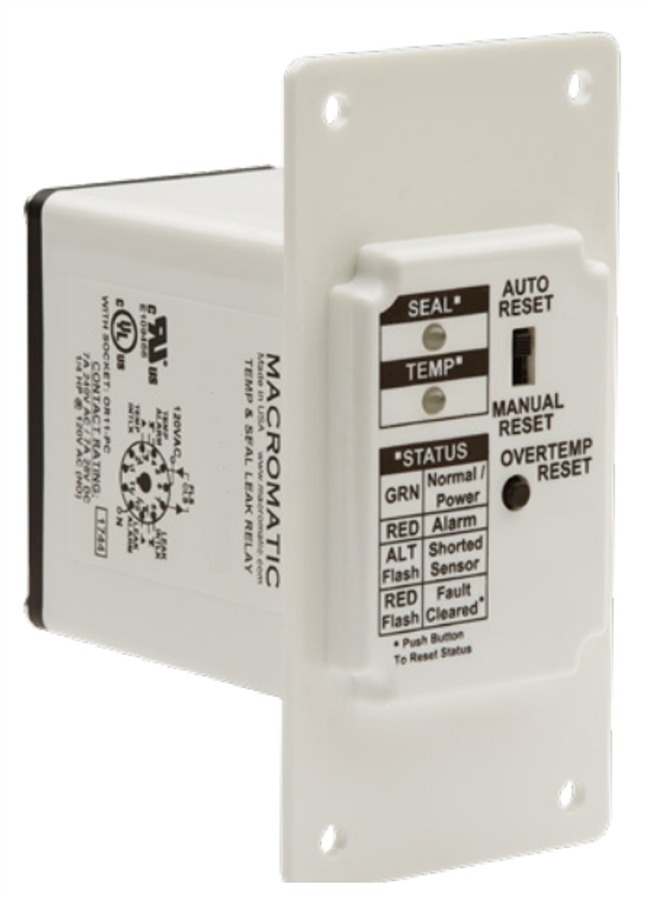

The Macromatic TCF2F is an over temperature & seal leak relay. This 11 Pin plug-in relay has an input voltage of 120V. The deadfront inner door mounted relay is made to monitor for leaks in submersible pump seals, as well as over temperature issues. It has an output of 7A SPDT and is made for pumps with CLS or FLS leak sensors. The housing style allows the relay to be mounted and used without needing to open the door. LEDs indicate the status. Includes 11 pin OR11-PC back mounted socket. Note: Image is for reference, actual part may differ

Specifications

  • Relay Function- Seal Leak & Over Temperature
  • Input Voltage- 120V AC
  • Output- (2) 7A SPDT
  • Voltage Tolerance- +10/-15% of nominal at 50/60 Hz
  • Load- 3VA
  • Response Time- Over Temp Manual Reset & Cleared Fault Reset: 500ms, Short Sensor: 30 Sec, All Other Functions: 3 Sec
  • Operating Temperature- -28 C to 65 C (-18 F to 149 F)
  • Storage Temperature- -40 C to 85 C (-40 F to 185 F)
  • Output Contacts- 7A @ 240V AC / 7A @ 28V DC, 1/4 HP @ 120V AC (N.O.)
  • Life- Mechanical: 10,000,000 Operations, Full Load: 100,000 Operations

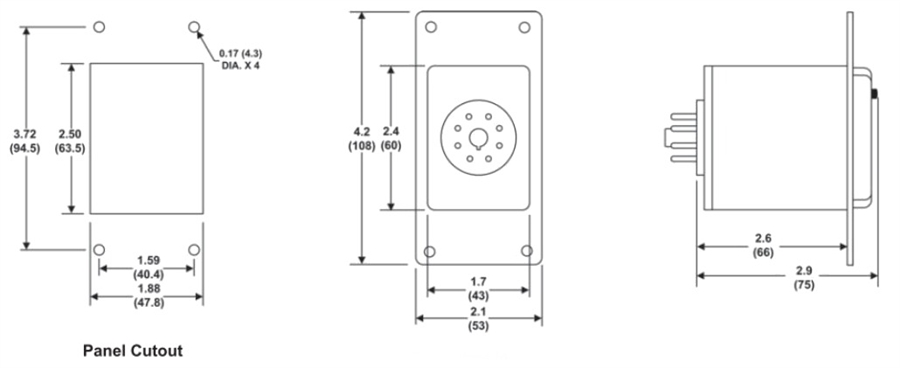

  • Dimensions- 4.2" Height x 2.1" Width x 2.9" Depth
  • Approvals- UL and CUL Recognized, UL & CUL Listed (with Socket)

The relay is connected to a the FLS or CLS sensor which is connected in series with the over temperature switch. There is one output contact for overheating and one for seal leaks, which are isolated. When the input voltage is introduced, and there are no errors, the over temperature relay is energized & the seal leak relay is not. The LEDs are green. If overheating occurs, the over temperature relay de-energizes and the TEMP LED is red. Once the overheating has been corrected, the relay resets manually or automatically. A selector switch allows the user to choose between manual or automatic reset. Manual reset takes place by pushing the button on top. In the event of a seal leak, when the leakage sensor opens, the seal leak relay energizes & the SEAL LED is red. The LED flashes red when the fault is cleared and will also flash red in automatic mode for the TEMP LED. They will alternate flashing red if there is a short in the sensor wire.

Macromatic TCF-F Series Relay Installation Instructions

Macromatic Over Temperature & Seal Leak Relay Competitive Comparison

11 Pin Plug In Inner Door Mount Over Temperature & Seal Leak Relay TCF2F
