Jorc 2811 230V AC OPTIMUM Timer Controlled Drain, 1/4" NPT, 0-1200 PSI, Steel Valve

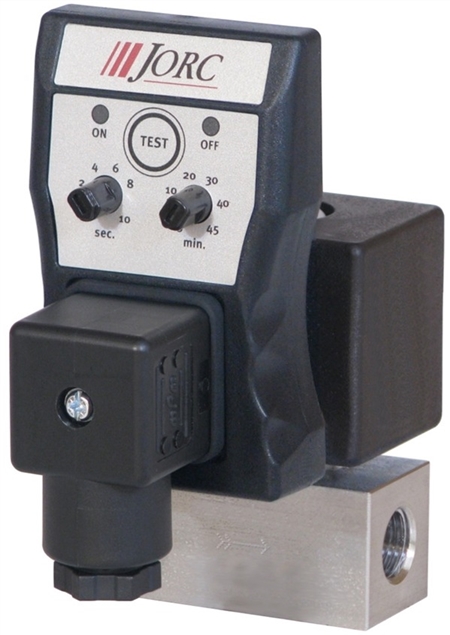

Jorc 2811 230V AC OPTIMUM Timer Controlled Condensate Drain Valve
Jorc 2811 230V AC OPTIMUM Timer Controlled Drain, 1/4" NPT, 0-1200 PSI



Alternative Views:


Price: $291.00
MFG P/N: 2811
MFG: Jorc
Weight (lbs): 3

Quantity in Stock :1


Availability:
In Stock
Product Code: 2811
Qty:

Description


The Jorc 2811 230V AC OPTIMUM timer controlled condensate drain has a valve housing made from 304 stainless steel. It features LED indicators, adjustable timers, a direct acting solenoid valve, and a 2mm opening. Ideal for refrigerated dryers, liquid separators, and other types of high pressure compressed air applications, particularly those with high flow rates. Comes with 7 ft power cord.

  • 230V AC
  • 1/4" NPT inlet & outlet
  • Rated for 0-1200 PSI (0-80 bar)
  • Serviceable valve
  • Balance line not needed
  • Used with any type of compressed air system
  • TEST feature
  • Accurate timing cycles
  • On/off LEDs

Specifications

  • Dimensions- 4.424" Length x 1.969" Width x 3.911" Depth
  • Max Compressor Capacity- Any Size
  • Ambient Temperature- 34 F to 122 F (1 C to 50 C)
  • Timer Cycle Range (On/Off)- 0.5-10 sec / 0.5-45 min
  • Timer PCB- SMD Technology
  • Timer Cycle Indication- LEDs
  • Valve Type- 2/2 Way, Direct Acting
  • Valve Opening- 2mm (0.08")
  • Valve Seals- FPM
  • Inlet Connection Height- 10mm (0.4")
  • Valve Housing Material- 304 Stainless Steel
  • Power Connection- DIN 43650 Form A
  • Environmental Protection- NEMA 4 (IP 65)

Jorc OPTIMUM Timer Drain Installation Manual

Jorc 2811 230V AC 1200 PSI Stainless Steel Timer Condensate Drain Valve
