Jorc 2603 OPTIMUM Timer Controlled Condensate Drain Valve, 230V AC, 1/2" NPT, Brass
OPTIMUM timer drain for compressed air condensate removal with 230V AC, 1/2" NPT inlet/outlet connections, 0-230 PSI (0-16 bar) pressure rating, adjustable cycle timing, LED status indication, and a brass valve housing.
Why Choose the Jorc 2603 OPTIMUM Timer Drain?

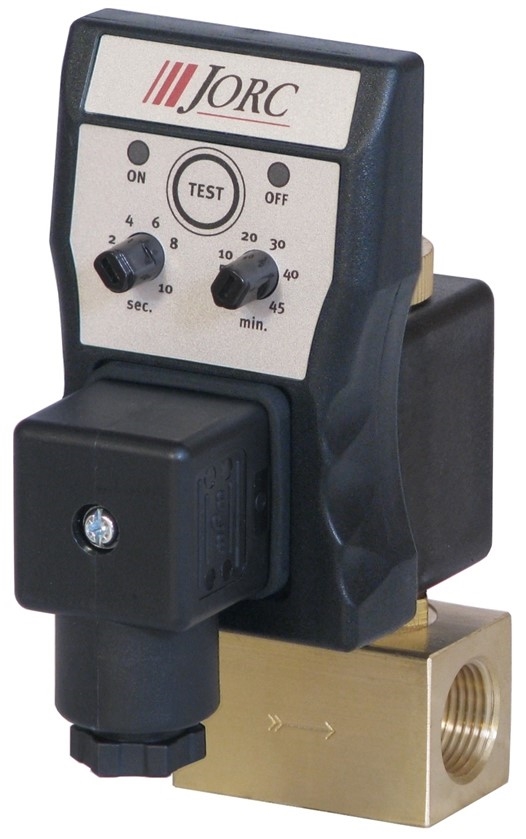

The Jorc 2603 OPTIMUM timer controlled condensate drain valve is designed to remove condensate from compressed air equipment without constant manual draining. This model uses a brass valve housing, a direct acting solenoid valve, LED cycle indication, adjustable timing, and a 4.5mm (0.177") valve opening.
Use it on air compressors, refrigerated air dryers, and other compressed air systems where reliable condensate discharge is needed under high-flow or steady-load operating conditions. The drain is rated for 0-230 PSI (0-16 bar) and includes 7 ft power cord for installation.
⚡ 230V AC
Runs on the listed AC supply voltage for compressed air drain control
🔩 1/2" NPT
Uses threaded inlet and outlet connections for condensate drain plumbing
💧 0-230 PSI
Built for compressed air systems up to the listed operating pressure
🛠️ Brass
Durable valve body with serviceable design for maintenance access
⚠️ Confirm Voltage, Port Size, and Pressure Rating
Before ordering, confirm the drain voltage, 1/2" NPT inlet/outlet size, available power connection, condensate line routing, and system pressure. This model is for compressed air condensate draining and should be installed according to the Jorc OPTIMUM Timer Drain installation manual.
This model is rated for 0-230 PSI (0-16 bar). Do not use it outside the specified compressed air system limits.
📋 Timer Drain Operation
The Jorc 2603 uses adjustable ON/OFF cycle timing to discharge condensate automatically. The timer cycle range is 0.5-10 sec / 0.5-45 min, with LED indication for operating status and a TEST function for quick manual checks. The valve is a 2/2 way, direct acting design with FPM seals.
Typical use: Automatic condensate removal from compressed air systems, dryers, filters, and compressor drain points where repeatable timed discharge is preferred.
Key Features & Benefits
- 230V AC
- 1/2" NPT inlet & outlet
- Rated for 0-230 PSI (0-16 bar)
- High quality PCB components
- Serviceable valve
- Will not air lock while in use
- Can be used with any type & any size compressed air system
- TEST feature
- Accurate time cycles
- LEDs indicate status
- Easy to grip adjustable knobs
- Environmental protection: NEMA 4 (IP 65)
Technical Specifications
|
Brand
|
Jorc
|
|
Model Number
|
2603
|
|
Series
|
OPTIMUM
|
|
Product Type
|
Timer Controlled Condensate Drain Valve
|
|
Voltage
|
230V AC
|
|
Inlet / Outlet Connection
|
1/2" NPT
|
|
Pressure Rating
|
0-230 PSI (0-16 bar)
|
|
Valve Housing Material
|
Brass
|
|
Timer Housing Material
|
ABS Plastic
|
|
Valve Type
|
2/2 Way, Direct Acting
|
|
Valve Opening
|
4.5mm (0.177")
|
|
Valve Seals
|
FPM
|
|
Timer Cycle Range
|
0.5-10 sec / 0.5-45 min
|
|
Timer PCB
|
SMD Technology
|
|
Timer Cycle Indication
|
LEDs
|
|
Max Compressor Capacity
|
Any Size
|
|
Ambient Temperature
|
34 F to 131 F (1 C to 55 C)
|
|
Inlet Connection Height
|
10mm (0.4")
|
|
Power Connection
|
DIN 43650 Form A
|
|
Environmental Protection
|
NEMA 4 (IP 65)
|
|
Dimensions
|
4.469" Length x 1.969" Width x 3.518" Depth
|
|
Power Cord
|
7 ft power cord
|
📋 Basic Installation Overview
1. Confirm Utilities: Verify 230V AC power, the correct 1/2" NPT inlet and outlet connection size, and a suitable condensate discharge location.
2. Install in the Drain Line: Mount the drain in the correct orientation and avoid piping stress, blocked outlets, or sharp hose bends.
3. Set the Timer: Adjust the ON/OFF cycle for the amount of condensate produced by the compressor, dryer, or filter location.
4. Test the Valve: Use the TEST function to confirm discharge before placing the system back into normal operation.
Always follow the Jorc OPTIMUM Timer Drain installation manual before operation.
📦 What's Included
• Timer controlled condensate drain valve
• 7 ft power cord
• DIN 43650 Form A power connection
• Jorc OPTIMUM Timer Drain installation manual reference
📞 Jorc Product Support
Reference the Jorc OPTIMUM Timer Drain Installation Manual
Use the manual to confirm wiring, timer adjustment, valve installation, service steps, and compressed air system requirements for this model.
This OPTIMUM timer drain is intended for automatic condensate removal in compressed air applications.
|
|
|
