Deca CPE4N Screw Clamp DIN Rail Ground Terminal Block, 10-26 AWG

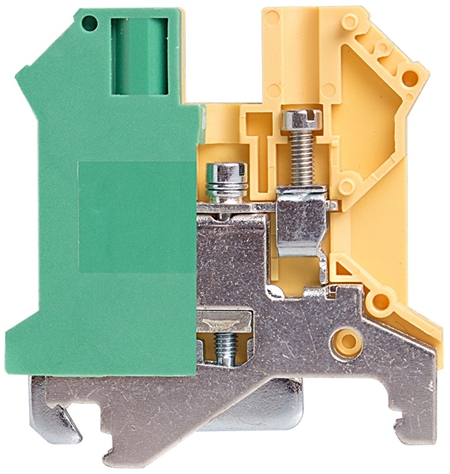

Deca CPE4N Screw Clamp DIN Rail Ground Terminal Block
Deca CPE4N Screw Clamp DIN Rail Ground Terminal Block, 10-26 AWG

Alternative Views:
Price: $3.50
Note: Delivery: 2-5 Business Days
MFG P/N: CPE4N
MFG: Deca
Weight (lbs): 0.03

Quantity in Stock :709


Availability: In Stock
Product Code: CPE4N
Qty:

Description


The Deca CPE4N screw clamp DIN rail ground terminal block accommodates 10-26 AWG wire. This terminal block can be easily mounted on any standard 35 mm DIN Rail. It is made from materials that are resistant to flame, shock, and vibration. It features a strong contact force, with low contact resistance, and the contact points are corrosion proof. UL & CUL Recognized.

Specifications

  • Housing Material- Polyamide 6.6, UL94-V0
  • Housing Color- Green/Yellow
  • Dimensions- 47.5 x 42.5 x 6mm
  • Wire Size- 10-26 AWG (0.2-4mm2)
  • Torque- 8.5 lb/in
  • Clamping Screw- M3
  • Stripping Length- 10-14mm
  • Approvals- C UR US

Deca CPE4N 10-26 AWG DIN Rail Ground Terminal Block
