Deca Spring Clamp DIN Rail Ground Terminal Block, 4-16 AWG


Deca SPE16 Spring Clamp DIN Rail Ground Terminal Block
Deca SPE16 Spring Clamp DIN Rail Ground Terminal Block, 4-16 AWG

Alternative Views:


Price: $6.49
Note: Please call or email [email protected] for alternatives
MFG P/N: SPE16
MFG: Deca
Weight (lbs): 0.07

Quantity in Stock :(Out of Stock)


Availability:
Out of Stock
Product Code: SPE16
Qty:

Description


The Deca SPE16 spring clamp DIN rail ground terminal block accommodates 4-16 AWG wire. This terminal block can be easily mounted on any standard 35 mm DIN Rail. It is constructed from materials that resist flame, shock, and vibration. It features a strong contact force, with low contact resistance, and the contact points are corrosion proof. Ground type terminal blocks send the ground to the DIN rail. UL & CUL Recognized.

Specifications

  • Housing Material- Polyamide 6.6, UL94-V0
  • Housing Color- Green

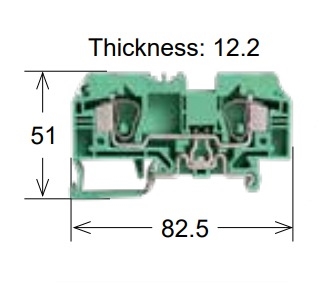

  • Dimensions- 82.5 mm Length x 51 mm Height x 12.2 mm Width (3.24" x 2" x 0.48")
  • Wire Size- 4-16 AWG
  • IEC Wire Size- 1.5-16 mm2
  • Stripping Length- 16-17 mm
  • Approvals- C UR US

Deca SPE16 4-16 AWG DIN Rail Ground Terminal Block
