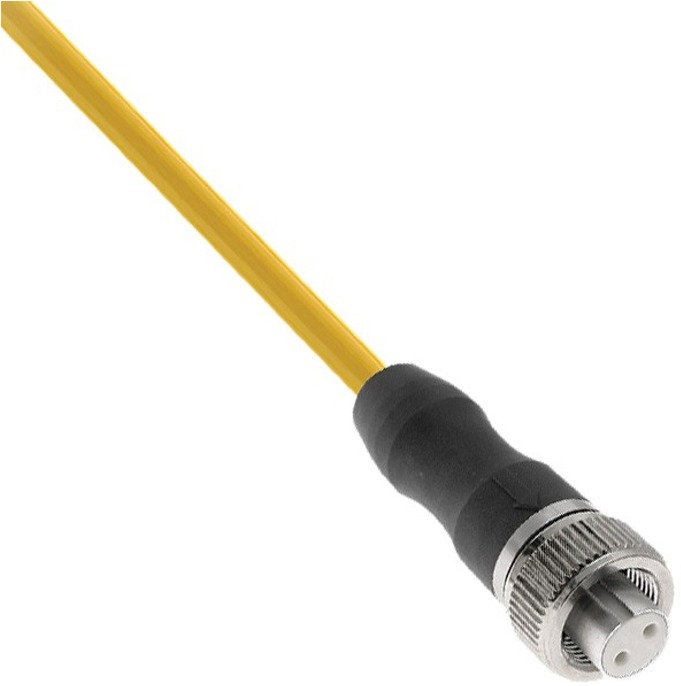

Mencom MS10SL-2FP-1M MIL-SPEC Cordset, Size 10SL-2, 2 Pole, Female Straight, 1 M

The Mencom MS10SL-2FP-1M MIL-SPEC Size 10SL-2 female straight cordset features a 2 pin insert, 16 gauge wire and 1 meter of cable. The cable is yellow PVC with silver plated copper alloy contacts. The cable is rated at 600V and 105 C. Rated IP 67. Operating temperature: -40 C to 105 C (-40 F to 221 F). The threaded couplings on Mencom MIL-SPEC cordsets allow the connector to withstand exposure to moisture and vibration once mated. They are perfect for the harsher environments found in industrial and automation applications, and are compatible with existing MIL-SPEC 5015 style connectors (5015 cross reference 10SL-4).

Pin A: White
Pin B: Black

Specifications

• Shell- Nickel Plated Aluminum
• Contacts- Silver Plated Copper Alloy
• Cable- 16/2 STOOW Yellow PVC Jacket
• Gasket- TPE
• Rated Voltage- 600 V
• Rated Current- 13 Amps
• Wire Gauge- 16
• Pin Count- 2
• Cable Length- 1 Meter (3.28 Feet)

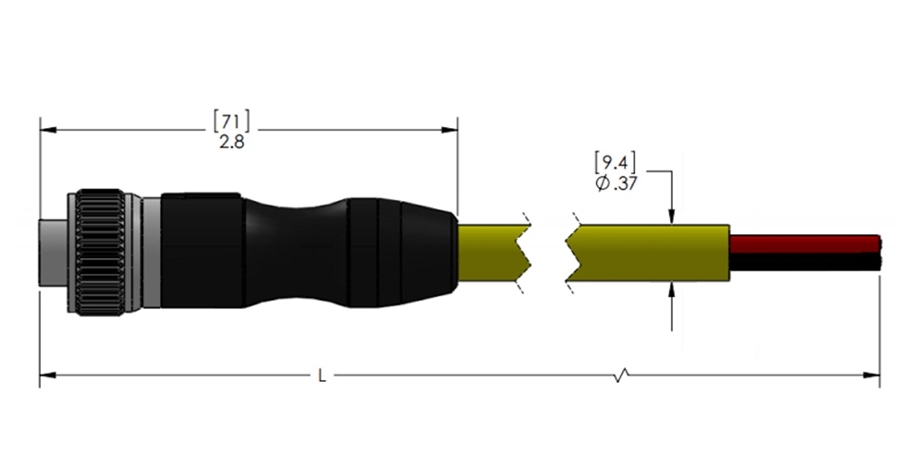

• Cable O.D.- 0.37
• Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
• Orientation Head- Female Straight
• Coupling Thread- Female
• Mating Thread / Type Head- 0.6250-24NEF
• Ground Wire- No
• Nut- No

Mencom MIL-SPEC 5015 Molded Cordset Part Number Guide
