Mencom MIN-2FP-12 MIN Size I Cordset, 2 Pole, Female Straight, 13A, 12 Feet

Mencom MIN Size I Cordset - MIN-2FP-12
Mencom MIN-2FP-12 MIN Size I Cordset, 2 Pole, Female Straight, 13A, 12 Feet



Alternative Views:


Our Price: $35.57
Note: Call for Availability
MFG P/N: MIN-2FP-12
MFG: Mencom
Weight (lbs): 1

Product Code: MIN-2FP-12
Qty:


Description


The Mencom MIN-2FP-12 MIN Size I female straight cordset features a 2 pin insert, 16 gauge wire and 12 feet of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is oil resistant and rated at 600V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MIN Size I (7/8") cordsets provide plug and play solutions for various applications.

Specifications

  • Body- Yellow PVC
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 16/2 STOOW Yellow PVC Jacket
  • Rated Voltage- 600 V
  • Rated Current- 13 Amps
  • Wire Gauge- 16
  • Pin Count- 2
  • Cable Length- 12 Feet (3.66 m)
  • Cable O.D.- 0.37
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head- Female Straight
  • Coupling Thread- Female
  • Mating Thread / Type Head- 7/8-16UN2
  • Nut- No
  • Approvals- UL & CUL Listed

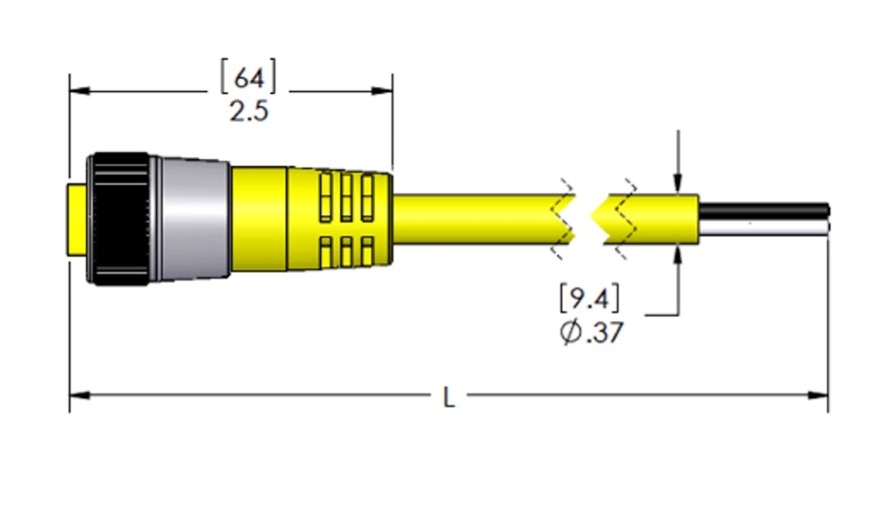

Mencom MIN-2FP-12 Female 2 Pin 7/8" Mini Connector Cable

Additional Product Information
Pin #1 - White
Pin #2 - Black

Can be compatible with certain Turck Minifast connectors and Brad Harrison/Molex 130006-0096

Mencom MIN Molded Cordset Part Number Guide
