Mencom MIN-2MFP-12 MIN Size I Cordset, 2 Pole, Male / Female, 13A, 12 Feet

Mencom MIN Size I Cordset - MIN-2MFP-12

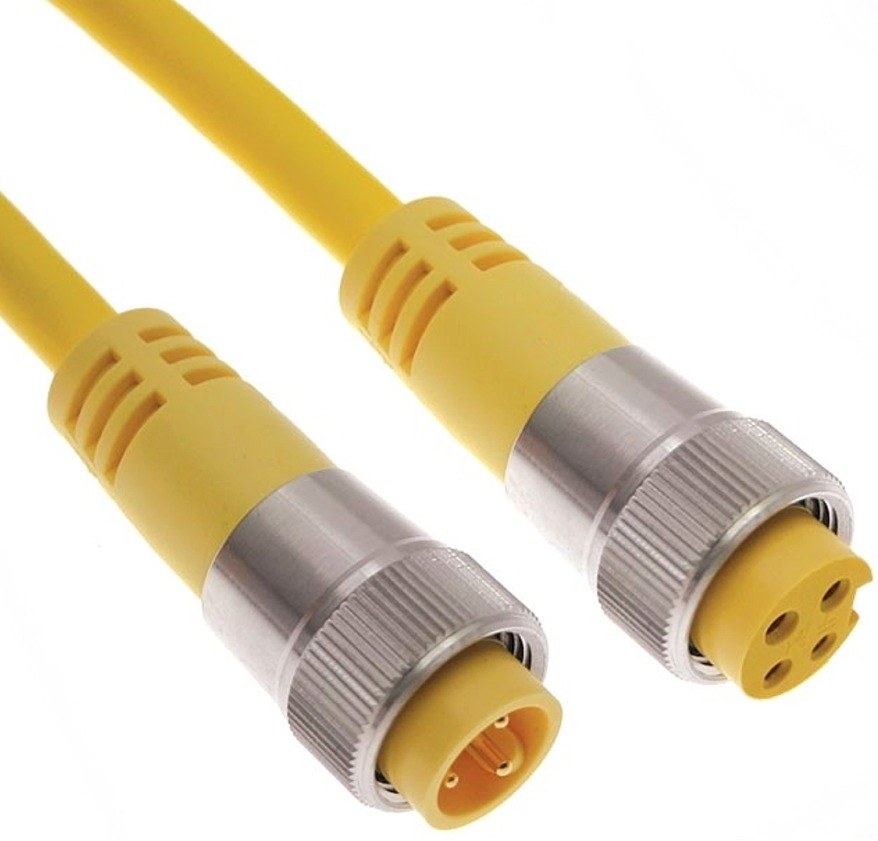

Mencom MIN-2MFP-12 MIN Size I Cordset, 2 Pole, Male / Female, 13A, 12 Feet



Alternative Views:


Our Price: $55.26
Note: Ships in 1-2 business days
MFG P/N: MIN-2MFP-12
MFG: Mencom
Weight (lbs): 1

Product Code: MIN-2MFP-12
Qty:


Description


The Mencom MIN-2MFP-12 MIN Size I male / female straight extension cordset features a 2 pin insert, 16 gauge wire and 12 feet of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is rated at 600V and 105 C. Rated IP 69. Mencom MIN Size I (7/8") cordsets provide plug and play solutions for various applications.

Specifications

  • Body- Yellow PVC
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Cable- 16/2 STOOW Yellow PVC Jacket
  • Rated Voltage- 600 V
  • Rated Current- 13 Amps
  • Wire Gauge- 16
  • Pin Count- 2
  • Cable Length- 12 Feet (3.66 m)
  • Cable O.D.- 0.37
  • Temperature- -40 C to 105 C (-40 F to 221 F)
  • Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head 1- Male Straight
  • Orientation Head 2- Female Straight
  • Coupling Thread- Female
  • Mating Thread / Type Head- 7/8-16UN2
  • Ground Wire- No
  • Nut- No
  • Approvals- UL & CUL Listed

Mencom MIN-2MFP-12 2 Pin 12 Foot Mini-Change Extension Cordset

Additional Product Information
Pin #1 - White
Pin #2 - Black

Mencom MIN Molded Cordset Part Number Guide
