Overview
The

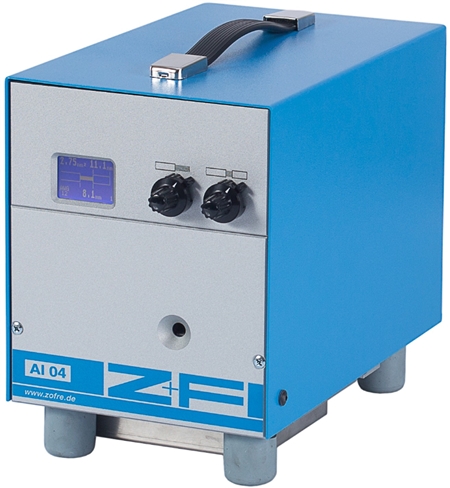

Z+F AI-04 is an electric benchtop wire stripping machine built for larger flexible PVC-insulated conductors from 2.5 to 16.0 mm² (14–6 AWG). It uses two robust V-shaped blades and continuously adjustable settings, eliminating blade changes across its supported wire range.14–6 AWG8 mm Max O.D.Digital Display
With an 8 mm maximum wire diameter, digital display, and approximately one-second cycle time, the AI-04 supports accurate preparation of larger conductors used in industrial controls, power distribution assemblies, and equipment wiring.
🔧 Large-Wire Processing Capacity
Heavy Conductor Range: Strips flexible wire from 2.5 to 16.0 mm².
Adjustable Operation: Sets strip and pull-off lengths from 3 to 20 mm without blade changes.
Powered Consistency: Electric motor drive supports repeatable results on larger conductors.
Key Features
- 8 mm maximum wire O.D.: accommodates larger insulated wire
- V-blade cutting technology: uses two robust stripping blades
- Continuously adjustable wire range: no blade replacement between supported sizes
- Digital display: supports clear machine setup
- Integrated spare blade: keeps replacement tooling at the workstation
- Designed for H05V-K and H07V-K conductors: suited to flexible PVC wire
✅ Why Choose This Wire Stripper?
The AI-04 extends the Z+F benchtop platform to larger conductors while retaining simple length adjustment and a no-change V-blade system. It helps reduce manual effort and setup time when preparing heavier flexible wire.
Applications
The AI-04 is designed for accurate wire preparation in applications such as:
- Industrial control-panel power wiring
- Power distribution and equipment assembly
- Large-conductor harness preparation
- Motor and machinery wiring
- Terminal and lug preparation
⚠️ Important Operating Information
Wire range: Use only supported 2.5–16.0 mm² flexible PVC-insulated conductors.
Maximum wire diameter: Do not exceed 8 mm (0.31 in).
Disconnect electrical power before inspecting or replacing cutting blades.
Performance Benefits
- Processes larger flexible conductors with less manual stripping effort
- Eliminates blade changes across the supported range
- Adjustable dimensions improve consistency before crimping or termination
- Compact benchtop format integrates into industrial assembly workstations
