Sealcon PFC29 Conduit Clip Mounting Bracket, Fits Size 29

Sealcon PFC29
Sealcon Conduit Clip Mounting Bracket, Fits Size 29

Alternative Views:
Price: $3.76
Note: Please call or email [email protected] for alternatives
MFG P/N: PFC29
MFG: Sealcon
Weight (lbs): 0.04

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: PFC29
Qty:


Description

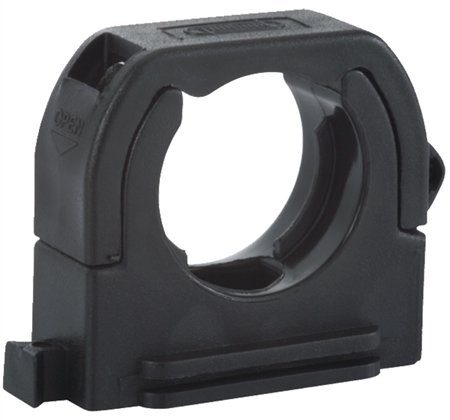

Sealcon PFC29 Size 29 Black Nylon Conduit Mounting Clip

Hold nominal size 29 conduit in place with a snap in nylon clip. The bracket uses a single mounting screw and is sold individually.

✅ Applications

Choose this bracket for size 29 conduit runs that require attachment to a mounting surface. The bracket is fixed with a single screw.

A Mounting Clip for Size 29 Conduit Tubing

The Sealcon PFC29 conduit mounting bracket supports nominal size 29 tubing. Its snap in clip design keeps the conduit positioned along a planned route on industrial equipment.

The bracket is made from black nylon polyamide PA6 and operates from -30°C to 80°C (-22°F to 176°F). It carries a V0 rating and UR approval. Also identified as Hummel 1.534.2901.00, it is sold individually.

📏 Conduit Compatibility

Nominal size 29

🔧 Single Screw Mounting

One screw secures the bracket to the mounting surface.

🔗 Snap In Clip

Holds the conduit tubing in place.

🛡️ Nylon PA6

Black polyamide construction with a V0 rating.

Key Features & Benefits

  • Organized conduit runs: Support tubing along the intended path on a machine frame or equipment panel.
  • Simple attachment: A single fixing point reduces the number of mounting screws needed per bracket.
  • Easy tubing placement: Attach the bracket to the mounting surface, then snap the conduit into position.

Specifications

Sealcon Part NumberPFC29
Hummel Part Number1.534.2901.00
Product TypeConduit tubing mounting clip
Nominal Conduit Size29
MaterialNylon polyamide PA6
ColorBlack
Height1.89" (48 mm)
Length2.39" (60.7 mm)
Height to Center1.06" (27 mm)
Screw Hole Size0.43" (11 mm)
Screw Head Size0.25" (6.5 mm)
Operating Temperature-30°C to 80°C (-22°F to 176°F)
Unit of SaleEach
Mounting MethodSingle screw
Conduit RetentionSnap in clip
Flame RatingV0
ApprovalUR

📦 Ordering Information

Sold individually as one Sealcon PFC29 conduit mounting bracket.

📏 Check Conduit Compatibility

Match the bracket to nominal size 29 conduit. Check the mounting hole and bracket dimensions when planning the conduit route.

🔧 Installation Notes

Attach the mounting bracket with a single screw, then engage the conduit tubing in the clip to hold it in position.

🔎 Hummel Cross Reference

Sealcon PFC29 is also known as Hummel 1.534.2901.00. Use either identifier when matching this mounting bracket to a parts list.
