Red Lion N-Tron 7900CPU CPU Managed Ethernet Switch

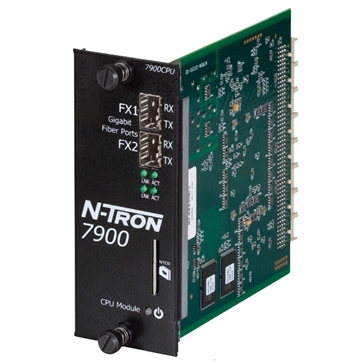

N-Tron CPU Fully Managed Industrial Ethernet Switch - 7900CPU
Red Lion N-Tron CPU Managed Ethernet Switch - 7900CPU



Alternative Views:


Price: $1,344.00
Note: Call 800-966-2345 for Lead Time
MFG P/N: 7900CPU
MFG: Red Lion N-Tron
Weight (lbs): 5



Availability:
In Stock
Product Code: 7900CPU
Qty:

Description Technical Specs


The Red Lion N-Tron ® Series 7900CPU is a fully managed Industrial Ethernet Modular Switch. Housed in a rugged DIN-Rail enclosure, the 7900 CPU features a modular format to allow for customization from the 9000 series, as well as gigabit capable transceivers (sold separately). As communication requirements change, different configurations can be adapted. Made with reliability, greater distance and noise immunity in mind, the 7900CPU can perform in extreme situations. The 7900CPU can be used with the 9000BP backplane and 4 slot chassis, which is sold separately.

PRODUCT FEATURES

  • Requires 2 SFP Gigabit CPU Module (Transceivers Sold Separately)
  • Compatible Modules (Transceivers Sold Separately):
    • 2 Port 100BaseFX Fiber Module (9002FX)
    • 4 Port 100BaseFX Fiber Module (9004FX)
    • 6 Port 10/100BaseTX Copper Module (9006TX)
  • Onboard Temperature Sensor
  • Store-and-forward Technology
  • Auto Sensing 10/100BaseTX, Duplex, & MDIX
  • Redundant Power Inputs (10-30 VDC)
  • ESD & Surge Protection Diodes on all Copper Ports
  • Configurable Bi-Color Fault Status LEDs
  • Rugged DIN-Rail Enclosure
  • SNMP v1, v2, v3 & Web Browser Management
  • Configuration Backup by Optional SD Card
  • Detailed Ring Map & Fault Location Charting
  • N-Ring Technology with ~30ms Healing
  • N-View OPC Monitoring
  • N-Link Redundant N-Ring Coupling
  • IGMP Auto Configuration
  • 802.1Q Tag VLAN and Port VLAN
  • 802.1p QoS, Port QoS & DSCP
  • Ethernet/IP CIP Messaging
  • Link Layer Discovery Protocol
  • Trunking
  • Port Mirroring
  • IEEE 802.1D RSTP
  • 802.1d, 802.1w, 802.1D RSTP
  • DHCP Server, Option 82 Relay, Option 61, IP Fallback
  • Local Port IP Addressing
  • Port Security- MAC Address Based

Red Lion N-Tron Series 7900 User Manual

N-TRON 7900 Central Processing Unit (CPU)

Additional Product Information

The N-TRON 7900CPU Industrial Ethernet Switch features two SFP gigabit ports. The 7900CPU auto-negotiates the speed and performance capabilities of the TX port connections, and can be hard coded via the user interface. A high speed processor permits wire speed capability simultaneously on all 100BaseTX ports.

The 7900CPU has extended industrial specifications such as greater temperature range, greater shock & vibration specs, and redundant power inputs.

The 7900CPU features management functions such as remote monitoring and N-Ring technology. The 7900CPU offers Web Browser as well as N-TRON N-View OLE for Process Control (OPC) Server Software. N-View can be combined with popular HMI software packages to add network traffic monitoring, trending and alarming to any application using N-TRON switches configured with the N-View option. SNMP is available for switch link and status monitoring.

The status LEDs on the 7900CPU can be configured to respond to power failure and indicate N-Ring status. N-Ring Technology provides greater ring size capacity, detailed fault diagnostics, and a standard healing time of approximately 30ms. The integrity of the ring is continuously checked for errors. A ring map and fault location chart will be on the Ring Manager's web browser and OPC server that shows the current 'health status' of the Ring when all switches in the Ring are N-Tron fully managed switches.

7900 Series Data Sheet

Fully Managed Ethernet Switch Comparison Chart
