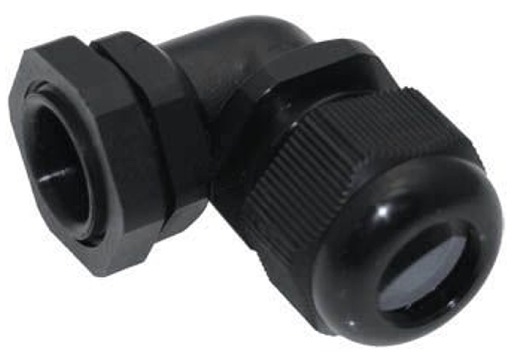

Mencom PCGA-09-B PG 9 0.197 - 0.394" (5-10 mm) Right Angle Cable Gland

PCGA-09-B PG 9 Black Right Angle Strain Relief Fitting
Mencom PCGA-09-B PG 9 0.197 - 0.394" (5-10 mm) Right Angle Cable Gland

Price: $4.03
Note: Delivery: 2-5 Business Days
MFG P/N: PCGA-09-B
MFG: Mencom
Weight (lbs): 0.013

Quantity in Stock :120


Availability: In Stock
Product Code: PCGA-09-B
Qty:


Description


Mencom PCGA-09-B black plastic right angle cable gland has PG 9 thread. Accommodates 0.197 - 0.394" (5-10 mm) cable. This cord grip is made to be liquid tight and creates a protective seal for cables that pass through enclosures. Sold Individually. Includes locknut. Rated IP 68 for dust and water protection, which is similar to NEMA 6P. Submersible up to 5 atmospheres of pressure.

Specfications

  • Cable Gland Material- Polyamide
  • Grommet- Neoprene
  • Color- Black
  • Mounting Thread- PG 9
  • Gland Upper Range- 0.394" (10mm)
  • Gland Lower Range- 0.197" (5mm)
  • Nut- Yes
  • Ingress Protection- IP 68 (Total protection from dust and prolonged immersion in water)
