Mencom PCGA-07-B PG 7 0.157 - 0.315" (4-8 mm) Right Angle Cable Gland

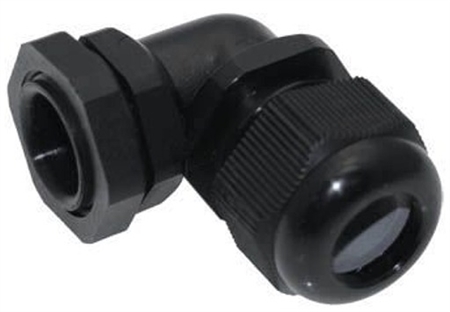

PCGA-07-B PG 7 Black Right Angle Strain Relief Fitting
Mencom PCGA-07-B PG 7 0.157 - 0.315" (4-8 mm) Right Angle Cable Gland

Alternative Views:
Price: $3.60
Note: Delivery: 2-5 Business Days
MFG P/N: PCGA-07-B
MFG: Mencom
Weight (lbs): 0.02

Quantity in Stock :26


Availability: In Stock
Product Code: PCGA-07-B
Qty:


Description


Mencom PCGA-07-B black plastic right angle cable gland has PG 7 thread. Accommodates 0.157 - 0.315" (4-8 mm) cable. This cord grip is made to be liquid tight and creates a protective seal for cables that pass through enclosures. Sold Individually. Includes locknut. Rated IP 68 for dust and water protection, which is similar to NEMA 6P. Submersible up to 5 atmospheres of pressure.

Specfications

  • Cable Gland Material- Polyamide
  • Grommet- NBR
  • Color- Black
  • Mounting Thread- PG 7
  • Gland Upper Range- 0.315" (8mm)
  • Gland Lower Range- 0.157" (4mm)
  • Nut- Yes
  • Ingress Protection- IP 68 (Total protection from dust and prolonged immersion in water)
