Mencom PCG-48 PG 48 1.34- 1.73" (34 - 44 mm) Cable Gland

PCG-48 PG 48 Gray Strain Relief Fitting
Mencom PCG-48 PG 48 1.34- 1.73" (34 - 44 mm) Cable Gland

Alternative Views:
Price: $27.17
Note: Delivery: 2-5 Business Days
MFG P/N: PCG-48
MFG: Mencom
Weight (lbs): 0.43

Quantity in Stock :27


Availability: In Stock
Product Code: PCG-48
Qty:


Description Technical Specs

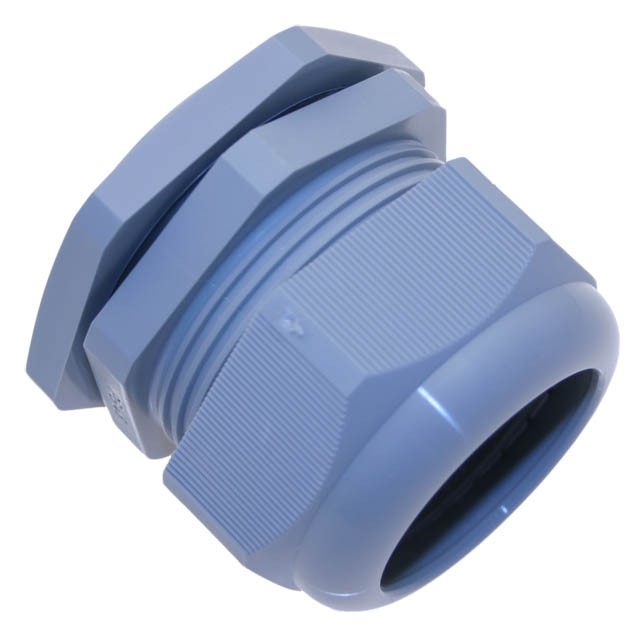

Mencom PCG-48 gray plastic cable gland has PG 48 thread. Accommodates 1.34- 1.73" (34 - 44 mm) cable. This strain relief fitting, also referred to as a cord grip, is designed to be liquid tight and is compatible with ILME hoods. The PCG48 is used in many different applications and industries, as it creates a protective seal for cables that pass through enclosures. Sold Individually. Includes locknut. Rated IP 68 for dust and water protection. Temperature Range: -20 C to 100 C. UL & CUL Recognized.

  • Provides strain relief for cable connections
  • Tight seal keeps out dirt and moisture
  • IP 68-5 BAR rating, similar to the NEMA 6P rating given to enclosures
  • Submersion under water for up to 5 atmospheres of pressure
  • Grommet creates seal around cable

Mencom PG 48 Cable Gland PCG-48

Additional Product Information
A Buna-N O-ring is included with the PCG-48 cable gland, so it can reach an IP 68 rated seal against the enclosure. Features a wide clamping range. The IP 68 rating indicates that the strain relief fitting is completely protected from dust, and can withstand submersion in water. It has a polyamide construction, which is known for its durability, so it will be able to handle many environmental conditions. The Buna-N rubber in the O-Ring can also work under a wide temperature range and stands up to certain chemicals.
