Mencom PCG-42R PG 42 0.984- 1.22" (25 - 31 mm) Cable Gland

PCG-42R PG 42 Gray Strain Relief Fitting
Mencom PCG-42R PG 42 0.984- 1.22" (25 - 31 mm) Cable Gland

Alternative Views:
Price: $24.38
Note: Delivery: 2-5 Business Days
MFG P/N: PCG-42R
MFG: Mencom
Weight (lbs): 0.236

Quantity in Stock :23


Availability: In Stock
Product Code: PCG-42R
Qty:


Description Technical Specs

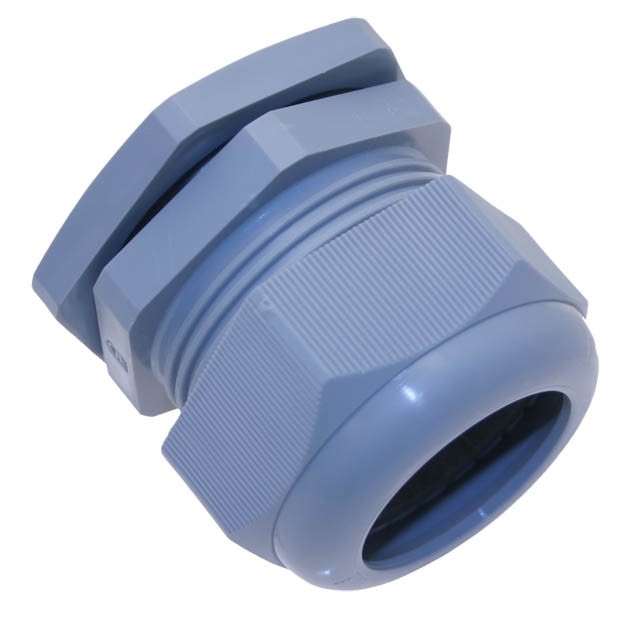

Mencom PCG-42R gray plastic cable gland has PG 42 thread. Accommodates 0.984" - 1.22" (25 - 31 mm) cable. This cord grip is designed to be liquid tight and can be used with ILME enclosures and hoods. The PCG42R can be found in many different applications and industries, as it creates a protective seal for cables that pass through enclosures. Sold Individually. Includes locknut. Rated IP 68 for protection against exposure to dirt and moisture. Temperature Range: -20 C to 100 C. UL & CUL Recognized.

  • Creates strain relief for cable connections
  • Seal is strong enough to keep dust and water out
  • IP 68-5 BAR rating, similar to the NEMA 6P rating given to enclosures
  • Submersion under water for up to 5 atmospheres of pressure
  • Grommet provides the seal around cable

Mencom PG Cable Gland with Reduced Insert PCG-42R
Additional Product Information
The PCG-42R cable gland includes a Buna-N O-ring, in order to attain an IP 68 rated seal against the enclosure. It is made for use with round cables, and is not designed for flat or ribbon cables. Features a wide clamping range and a reduced size insert. The IP 68 rating means that the cable gland is completely protected from dust, and can stand up to submersion in water. It has a polyamide construction, which is known for its durability, so it will be able to handle many environmental conditions. The Buna-N rubber in the O-Ring can also work under a wide temperature range and is resistant to certain chemicals.
