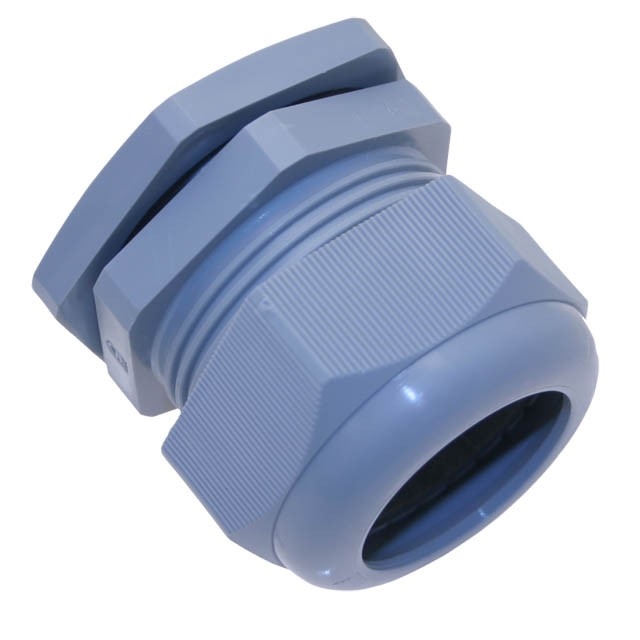

Mencom PCG-42 PG 42 1.18- 1.5" (30 - 38 mm) Cable Gland

PCG-42 PG 42 Gray Strain Relief Fitting
Mencom PCG-42 PG 42 1.18- 1.5" (30 - 38 mm) Cable Gland

Alternative Views:
Price: $21.89
Note: Delivery: 2-5 Business Days
MFG P/N: PCG-42
MFG: Mencom
Weight (lbs): 0.236

Quantity in Stock :18


Availability: In Stock
Product Code: PCG-42
Qty:


Description Technical Specs


Mencom PCG-42 gray plastic cable gland has PG 42 thread. Accommodates 1.18" - 1.5" (30 - 38 mm) cable. This cord grip, also known as a strain relief fitting, is designed to be liquid tight and can be used with ILME hoods. The PCG42 is used in many different applications and industries, as it creates a protective seal for cables that pass through enclosures. Sold Individually. Includes locknut. Rated IP 68 for protection against exposure to dust and water. Temperature Range: -20 C to 100 C. UL & CUL Recognized.

  • Provides strain relief for cable connections
  • Seal is strong enough to keep out dirt and moisture
  • IP 68-5 BAR rating, similar to the NEMA 6P rating given to enclosures
  • Submersion under water for up to 5 atmospheres of pressure
  • Grommet creates seal around cable

Mencom Liquid Tight Plastic Cord Grip PCG-42
Additional Product Information
A Buna-N O-ring is included with the PCG-42 cable gland in order to attain an IP 68 rated seal against the enclosure. It is made for use with round cables, and is not intended for flat or ribbon cables. Features a wide clamping range. The IP 68 rating means that the cable gland is completely protected from dust, and can stand up to submersion in water. It has a polyamide construction, which is known for its durability, so it will be able to handle many environmental conditions. The Buna-N rubber in the O-Ring can also work under a wide temperature range and stands up to certain chemicals.
