Mencom PCG-36R PG 36 0.787- 1.02" (20 - 26 mm) Cable Gland

PCG-36R PG 36 Gray Strain Relief Fitting
Mencom PCG-36R PG 36 0.787- 1.02" (20 - 26 mm) Cable Gland

Alternative Views:
Price: $24.05
Note: Please call or email [email protected] for alternatives
MFG P/N: PCG-36R
MFG: Mencom
Weight (lbs): 0.17

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: PCG-36R
Qty:


Description Technical Specs


Mencom PCG-36R gray plastic cable gland has PG 36 thread. Accommodates 0.787" - 1.02" (20 - 26 mm) cable. This strain relief fitting, also referred to as a cord grip, is made to be liquid tight and is compatible with ILME hoods. The PCG36R proves useful in a large variety of applications and industries, in order to create a protective seal for cables that pass through enclosures. Sold Individually. Includes locknut. Rated IP 68 for dirt and water protection. Temperature Range: -20 C to 100 C. UL & CUL Recognized.

  • Gives strain relief to cable connections
  • Seal is strong enough to keep dust and moisture out
  • IP 68-5 BAR rating, similar to the NEMA 6P rating given to enclosures
  • Can be submerged under water for up to 5 atmospheres of pressure
  • Grommet creates the seal around cable

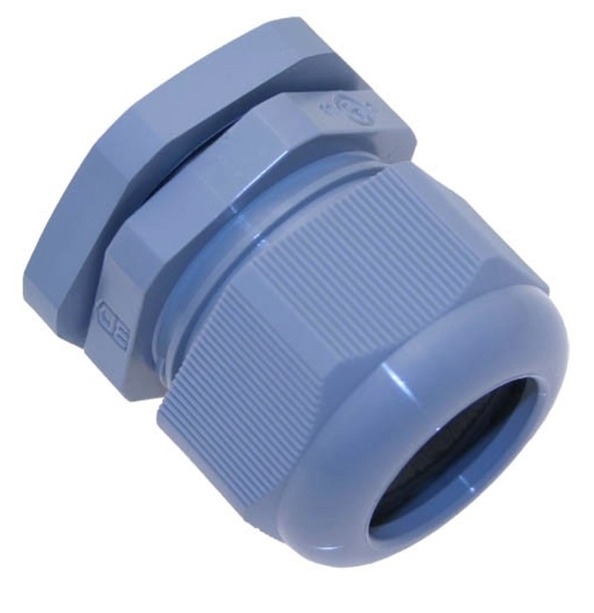

PCG-36R Mencom Gray Plastic Cable Gland
Additional Product Information
A Buna-N O-ring is included with the PCG-36R in order to reach an IP 68 rated seal against the enclosure. It is made for use with round cables, and is not intended for flat or ribbon cables. Has a wide clamping range and a reduced size insert. The IP 68 rating means that the cable gland is totally protected from dust, and can stand up to submersion in water. It has a polyamide construction, which is known for its durability, so it will be able to handle many environmental conditions
