Mencom PCGA-21 PG 21 0.472 - 0.827" (12-21 mm) Right Angle Cable Gland

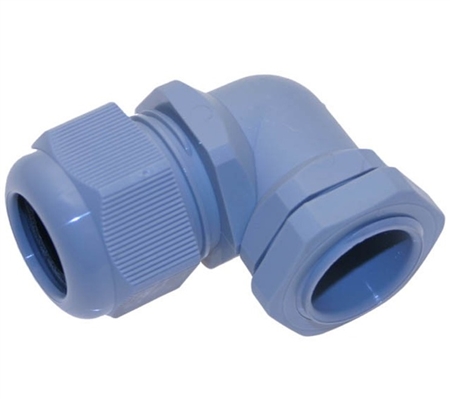

PCGA-21 PG 21 Gray Right Angle Strain Relief Fitting
Mencom PCGA-21 PG 21 0.472 - 0.827" (12-21 mm) Right Angle Cable Gland

Alternative Views:
Price: $12.38
Note: Delivery: 2-5 Business Days
MFG P/N: PCGA-21
MFG: Mencom
Weight (lbs): 0.04

Quantity in Stock :58


Availability: In Stock
Product Code: PCGA-21
Qty:


Description


Mencom PCGA-21 gray plastic right angle cable gland has PG 21 thread. Accommodates 0.472 - 0.827" (12-21 mm) cable. This cord grip is made to be liquid tight and creates a protective seal for cables that pass through enclosures. Sold Individually. Includes locknut. Rated IP 68 for dust and water protection, which is similar to NEMA 6P. Submersible up to 5 atmospheres of pressure.

Specfications

  • Cable Gland Material- Polyamide
  • Grommet- Neoprene
  • Color- Gray
  • Mounting Thread- PG 21
  • Gland Upper Range- 0.827" (21mm)
  • Gland Lower Range- 0.472" (12mm)
  • Mounting Hole Clearance- 28.6 (1.125)
  • Nut- Yes
  • Ingress Protection- IP 68 (Total protection from dust and prolonged immersion in water)

Mencom PCGA-21 PG 21 Right Angle Cord Grip
