Mencom PCGA-13.5R PG 13.5 0.276 - 0.472" (7-12 mm) Right Angle Cable Gland

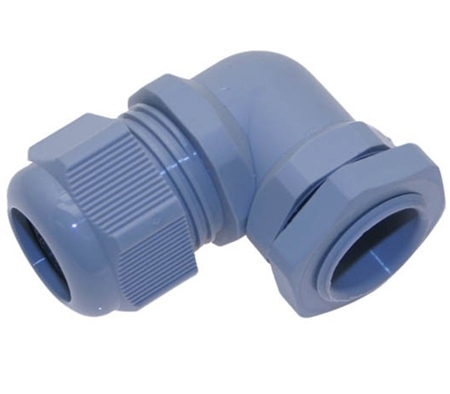

PCGA-13.5R PG 13.5 Gray Right Angle Strain Relief Fitting
Mencom PCGA-13.5R PG 13.5 0.276 - 0.472" (7-12 mm) Right Angle Cable Gland

Alternative Views:
Price: $4.99
Note: Please call or email [email protected] for alternatives
MFG P/N: PCGA-13.5R
MFG: Mencom
Weight (lbs): 0.02

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: PCGA-13.5R
Qty:


Description


Mencom PCGA-13.5R gray plastic right angle cable gland has PG 13.5 thread. Accommodates 0.276 - 0.472" (7-12 mm) cable. This cord grip is made to be liquid tight and creates a protective seal for cables that pass through enclosures. Sold Individually. Includes locknut. Rated IP 68 for dust and water protection, which is similar to NEMA 6P. Submersible up to 5 atmospheres of pressure.

Specfications

  • Cable Gland Material- Polyamide
  • Grommet- Neoprene
  • Color- Gray
  • Mounting Thread- PG 13.5
  • Gland Upper Range- 0.472" (12mm)
  • Gland Lower Range- 0.276" (7mm)
  • Mounting Hole Clearance- 20.7 (0.815)
  • Nut- Yes
  • Ingress Protection- IP 68 (Total protection from dust and prolonged immersion in water)

Mencom PCGA-13.5R PG 13.5 Right Angle Cord Grip
